Wiegmann WAS125SS Oil Tight Hole Seal 1-1/4 Inch 304 Stainless Steel
- MPN: WAS125SS
- UPC: 786725490950
- PPN: HBL-WAS125SS
- UNSPSC: 39121324
CAD
$96.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

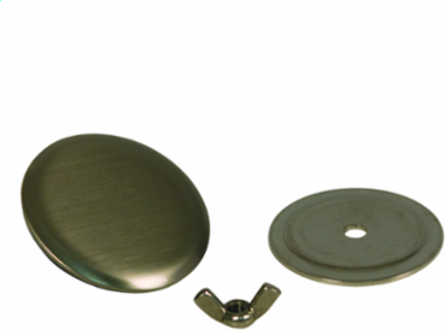

Oil Tight Hole Seal 1-1/4 Inch 304 Stainless Steel
Features
- Quick wing nut
- Oil resistant gasket
- Smooth grained finish
- Maintains UL rating of the enclosure when like materials are used
- 1-1/4-inch conduit holes. Quick wing nut. Oil resistant gasket. Grained finish.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Industry Standard(s)
- cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
- Application
- Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water.
- Height
- 1 in
- Special Features
- 1-1/4-inch conduit holes. Quick wing nut. Oil resistant gasket. Grained finish.
- Type
- Accessory
- Weight
- 0.2 lb.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- SEAL,OT,CONDUIT 1 1/4"
- Harmonization Code
- 7326908688
- Lead Time
- 14 wk
- Order Multiple
- 1 EA
- Stock Indicator
- S - Shelf Stock
- Material
- Stainless Steel
- BOX SIZE
- 0.800x6.400x3.250 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00786725490950
- Pallet Height
- 36.500 in
- Pallet Weight
- 481.800 lb.
- NAICS Code
- 3359326101
Dimensions4.75 in x 4 in x 1 in
Length4.75 in
ColorStainless Steel
Size4.75 in x 4 in x 1 in
StandardcULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
Width4 in
Accessory TypeHole Seal
Class CodeP05
Freight Class Code13330004
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Sub Class CodeP05P075
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.200 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
