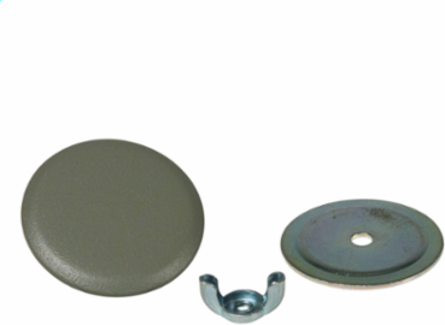

Wiegmann WAS400 Oil Tight Hole Seal 4 Inch Carbon Steel - Gray
Wiegmann WAS400 Oil Tight Hole Seal 4 Inch Carbon Steel - Gray
- MPN: WAS400
- UPC: 786725490875
- PPN: HBL-WAS400
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$127.06/ EA
Description
Oil Tight Hole Seal 4 Inch Carbon Steel - Gray
Features
- Quick wing nut
- Oil resistant gasket
- ANSI 61 gray polyester powder
- Maintains UL rating of the enclosure when like materials are used
- 4-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish.
Specifications
Specifications
- Country of Origin
- China
- Industry Standard(s)
- cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
- Application
- Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water.
- Cubic Capacity
- 2.8875 cu.in
- Finish
- Smooth
- Size
- 5.25 in x 5.5 in x 0.75 in
- Standard
- cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
- Width
- 5.5 in
- Accessory Type
- Hole Seal
- Material type
- Carbon Steel
- Class Code
- P05
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P075
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.600 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions5.25 in x 5.5 in x 0.75 in
Length5.25 in
ColorAnsi-61 Gray Smooth
Depth0.7 in
Height0.75 in
Special Features4-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish.
TypeAccessory
Weight0.6 lb.
Finish TypeSmooth
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL,OT,CONDUIT,4"
Harmonization Code7326908688
Lead Time14 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
MaterialCarbon Steel
BOX SIZE5.950x6.100x6.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00786725490875
Pallet Height34.250 in
Pallet Weight1585.350 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
