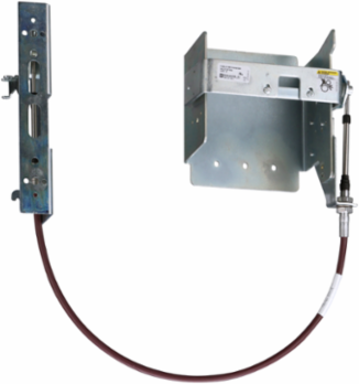

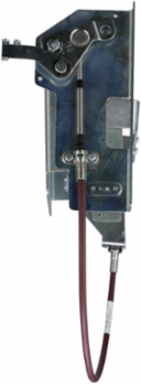

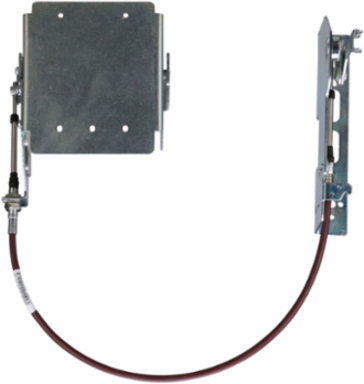

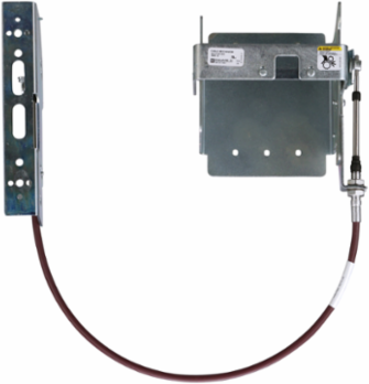

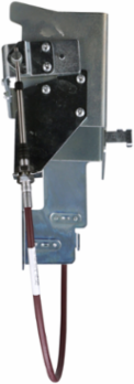

Square D 9422CSF304 Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable

Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/1ac41f649df5b500654fed59e34534531a8fdacf-medium.png

Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable

Square D 9422CSF304 Disconnect mechanism, circuit breaker, cable operated, 250A, 4 poles, MG-NSF circuit breaker, 36 inch cable

MPN: 9422CSF304
UPC: 785901103806
PPN: SCH-9422CSF304

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$600.85/ EA

Qty:

Loading add to cart quantity...

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with MG-NSF circuit breakers. This mechanism can be used with 250A 4 pole MG-NSF circuit breakers. This mechanism has a 36 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Range Of Product: 9422C

Product Or Component TypeSingle Cable Operating Mechanism

Contractual warranty

Warranty: 18 months

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free: Yes

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Rohs Exemption InformationYes

Pvc FreeYes

Eu Rohs DirectiveCompliant

Reach Free Of SvhcYes

Complementary

Number Of Cables: 1

Provided Equipment: ordered separately

Cable Length36 in

Circuit Breaker NameMG-NSF 4
