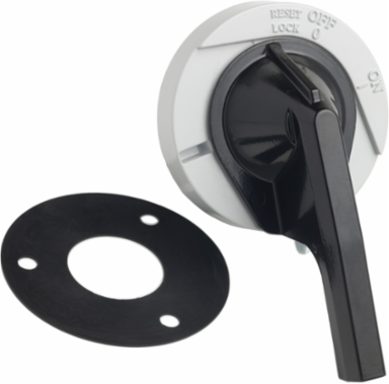

Square D 9421LHP48 Circuit breaker accessory, PowerPacT M/P, handle assembly, rotary, 8 inch, 800A to 1200A, NEMA 3/4, painted

Circuit breaker accessory, PowerPacT M/P, handle assembly, rotary, 8 inch, 800A to 1200A, NEMA 3/4, painted

Square D 9421LHP48 Circuit breaker accessory, PowerPacT M/P, handle assembly, rotary, 8 inch, 800A to 1200A, NEMA 3/4, painted

MPN: 9421LHP48
UPC: 785901691990
PPN: SCH-9421LHP48

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$290.29/ EA

Loading add to cart quantity...

Description

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed This handle assembly will work with the operating mechanism for a 3 pole PowerPact M with a 800A frame size. This handle assembly will also work with the operating mechanism for a 3 pole PowerPact P circuit breakers with a 1200A frame size. This handle assembly has a 8 inch handle. This painted handle assembly is rated for NEMA Type 3 and 4. Handle assembly is UL Component Recognized and CSA certified

Specifications

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Mercury Free: Yes

Eu Rohs Directive: Compliant with Exemptions

Halogen Content Performance: Halogen free plastic parts product

Rohs Exemption InformationYes

Pvc FreeYes

Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Product Or Component Type: Handle Assembly

Contractual warranty

Warranty: 18 months

Complementary

Product Destination: 9421LW7 operating mechanism

Product Compatibility: NEMA 1/3R/4/12 enclosure

Surface Finishpainted black

Length8 in
