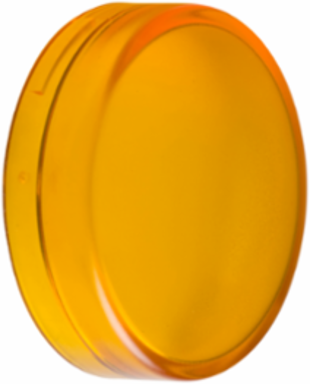

Schneider Electric ZBV015 Harmony XB4/XB5 22 mm Orange Lens Cap for BA9s Pilot Light, -40-70 C
- MPN: ZBV015
- PPN: SCH-ZBV015
CAD
$5.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony ZB, orange lens cap has a round shape. It is compatible with Harmony XB4 and XB5 pilot lights with BA9s base. This lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with BA9s base. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United States
Physical Attributes
- Cap Operator Or Lens Color
- orange
Important Information Attributes
- Range Of Product
- Harmony XB4, Harmony XB5
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0015254375
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0087973361
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 30 %
- Marking
- unmarked
- Quantity Per Set
- set of 10
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Cap Operator Or Lens Color
- orange
- Pep Code
- ENVPEP2312046_V1
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- pilot light
- Cap/Operator Or Lens Colour
- orange
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The Distribution Phase [A4]0.0002615565, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0028049099, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content10 %
Cap Or Lens Typeplain lens
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Accessory Destinationpilot light
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with universal LED. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorylighting accessories
Accessory / Separate Part Typecap
Accessory / Separate Part Designationlens cap
Package Weight(Lbs)2.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.01338924
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2312046_V1
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product CompatibilityBA 9s, BA 9s
Recycled Metal Content At Cr Level10 %
Mercury FreeYes
Environmental DisclosureENVPEP2312046_V1
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-12-07
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Range Of Product
- Harmony XB4, Harmony XB5
ETIM
- ETIM 8
- EC001072
ETIM 9EC001072
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
