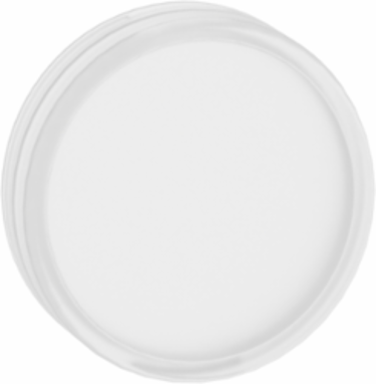

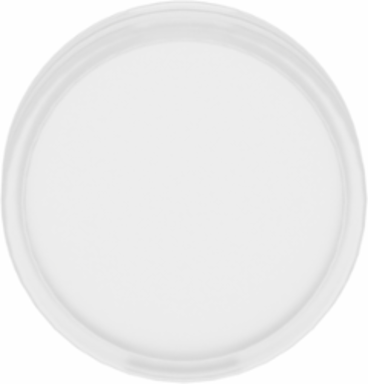

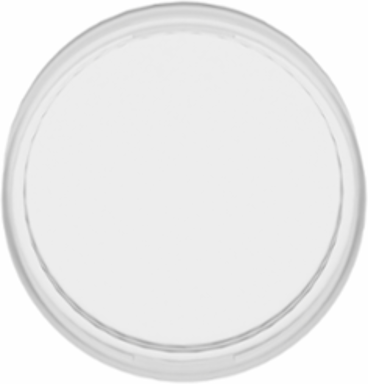

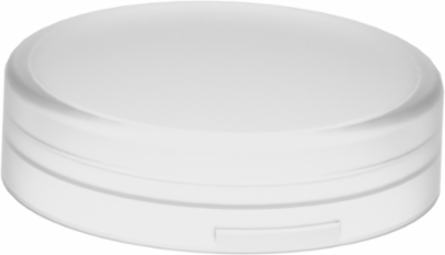

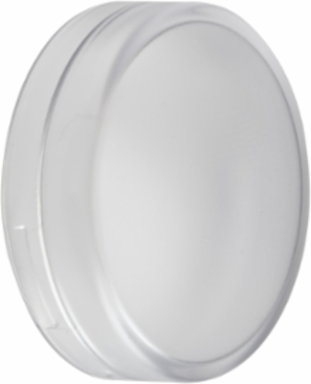

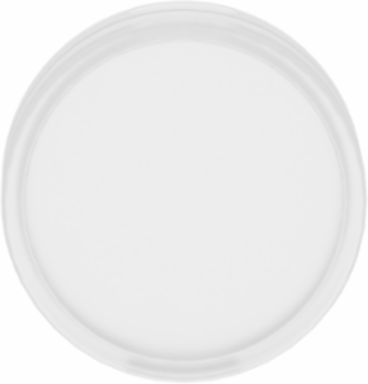

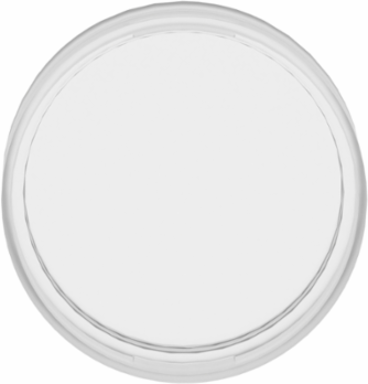

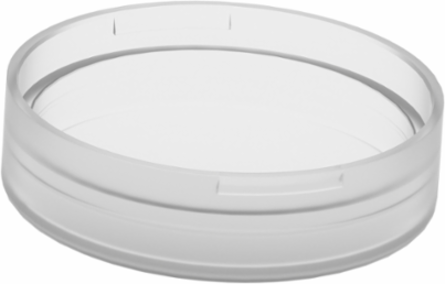

Schneider Electric ZBV0113 Harmony XB4 XB5 22mm White Lens Cap for Universal LED Pilot Lights
- MPN: ZBV0113
- PPN: SCH-ZBV0113
- UNSPSC: 39122216
CAD
$7.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony ZB, white lens cap has a round shape. It is compatible with Harmony XB4 and XB5 pilot lights with universal LED. This lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with universal LED. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- With various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 1 g |
|---|
Important Information Attributes
| Range Of Product | Harmony XB5, Harmony XB4 |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.0001307783, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.0014024549, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Product Kit Identifier | N |
| Average Percentage Of Recycled Plastic Content | 30 % |
| Important Message | A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Database Version | 2022-01 |
| Accessory / Separate Part Category | lighting accessories |
| Accessory / Separate Part Type | cap |
| Accessory / Separate Part Designation | lens cap |
| Customs Code | 8531909001 |
| Functional Unit Description | This lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with universal LED. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance |
| Functional Unit Unit | Unit |
| Cap Operator Or Lens Color | white |
|---|---|
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.0007627187 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0 kg CO2 eq., 0.0043986681 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Average Percentage Of Recycled Metal Content | 10 % |
| Cap Or Lens Type | plain lens |
| Marking | unmarked |
| Quantity Per Set | set of 10 |
| Shape Of Signaling Unit Head | round |
| Sustainable Packaging | Yes |
| Accessory Destination | pilot light |
| Data Source | extrapolated product |
| Accessory / Separate Part Destination | pilot light |
| Cap/Operator Or Lens Colour | white |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 0.00669462 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Verification Date | 2023-12-07 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Product Compatibility | universal LED, universal LED |
|---|---|
| Recycled Metal Content At Cr Level | 10 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2312046_V1 |
| Packaging Made With Recycled Cardboard | Yes |
| Pep Code | ENVPEP2312046_V1 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Range Of Product | Harmony XB5, Harmony XB4 |
|---|
ETIM
| ETIM 8 | EC001072 |
|---|---|
| ETIM 10 | EC001072 |
| ETIM 9 | EC001072 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
