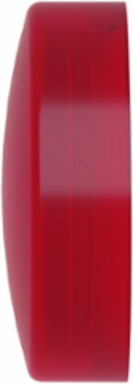

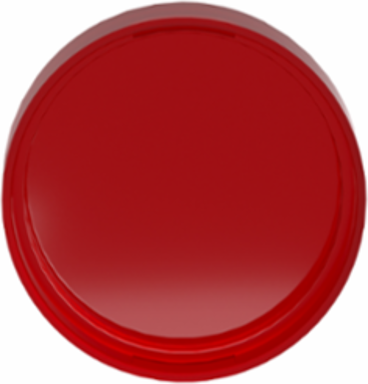

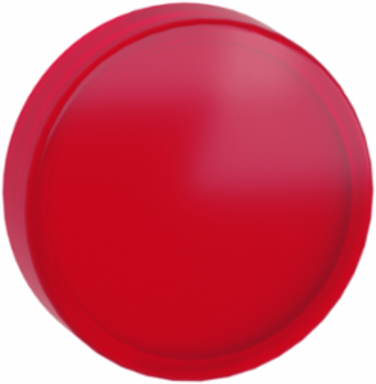

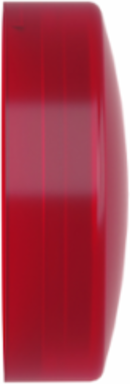

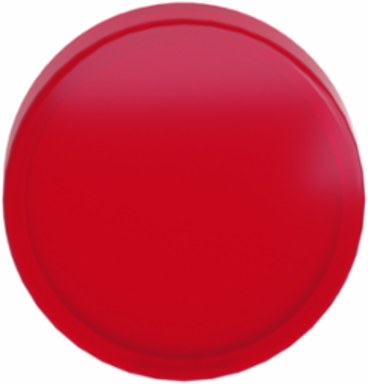

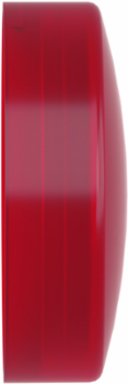

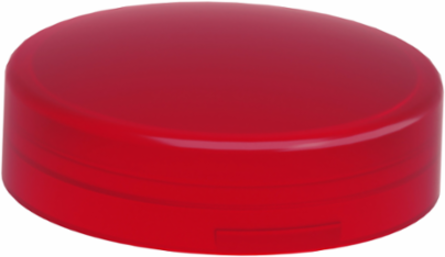

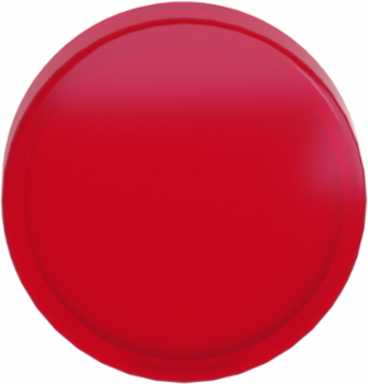

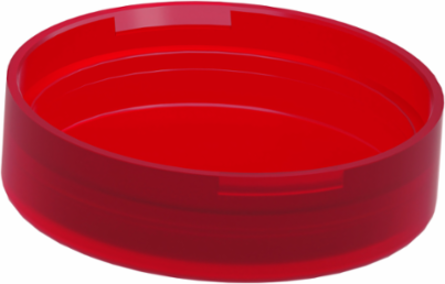

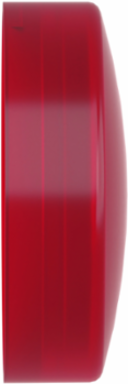

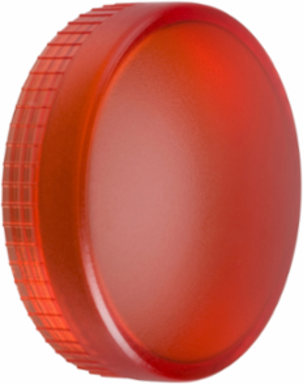

Schneider Electric ZBV0143 Harmony XB4 XB5 Red Lens Cap, 22mm, Round, Compatible with Universal LED
- MPN: ZBV0143
- PPN: SCH-ZBV0143
CAD
$7.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This Harmony ZB, red lens cap has a round shape. It is compatible with Harmony XB4 and XB5 pilot lights with universal LED. This lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with universal LED. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Features
- Designed as a direct-fit replacement for standard 22mm cutouts, this round red lens cap seamlessly integrates with Schneider Electric Harmony XB4 (metal) and Harmony XB5 (plastic) series pilot lights. You can instantly restore visibility to your existing industrial control panels without having to replace the entire pilot light assembly, keeping maintenance costs and mechanical downtime to an absolute minimum.
- Engineered to work perfectly with integral Universal LED blocks, this plain red indicator lens delivers high-contrast, edge-to-edge illumination across the factory floor. Plant personnel can clearly read critical machine statuses, fault states, and emergency conditions at a glance, drastically improving reaction times and overall workplace safety.
- Built to handle severe industrial climates, this durable plastic lens cap maintains its structural integrity in operating temperatures ranging from a freezing -40 C all the way up to 70 C (-40 F to 158 F). Whether mounted on an outdoor pumping station in the middle of winter or directly next to a high-heat industrial boiler, it resists cracking, shrinking, and fading for reliable, year-round signaling.
- Classified as a Schneider Electric Green Premium product, this indicator lens is fully RoHS-compliant.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Physical Attributes
- Cap Operator Or Lens Color
- red
Important Information Attributes
- Range Of Product
- Harmony XB4, Harmony XB5
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.0015254375
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0 kg CO2 eq., 0.0087973361
- Local Data Status
- Publishable
- Return Indicator
- Y
- Future Msrp
- 3.45
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Average Percentage Of Recycled Metal Content
- 10 %
- Cap Or Lens Type
- plain lens
- Marking
- unmarked
- Quantity Per Set
- set of 10
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- Yes
- Cap Operator Or Lens Color
- red
- Pep Code
- ENVPEP2312046_V1
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Destination
- pilot light
- Cap/Operator Or Lens Colour
- red
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Carbon Footprint Of The Distribution Phase [A4]0.0002615565, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0028049099, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]0 kg CO2 eq., 0
Local Publishable Date2026-01-12
Future Imap2.67
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Product Kit IdentifierN
Average Percentage Of Recycled Plastic Content30 %
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Accessory Destinationpilot light
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis lens cap provides clear visual feedback on the status of your machines. It is easily installed and replaced on compatible pilot light with universal LED. It is clearly distinguishable visually at a distance due to its clear color of lens, enabling complex machine statuses to be read at a glance
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Accessory / Separate Part Categorylighting accessories
Accessory / Separate Part Typecap
Accessory / Separate Part Designationlens cap
Package Weight(Lbs)2.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 0.01338924
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Verification Date
- 2023-12-07
- Psr Version
- PSR-0005-ed2-2016 03 29
Product Compatibilityuniversal LED, universal LED
Recycled Metal Content At Cr Level10 %
Mercury FreeYes
Environmental DisclosureENVPEP2312046_V1
Packaging Made With Recycled CardboardYes
Pep CodeENVPEP2312046_V1
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Range Of Product
- Harmony XB4, Harmony XB5
ETIM
- ETIM 8
- EC001072
ETIM 9EC001072
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
