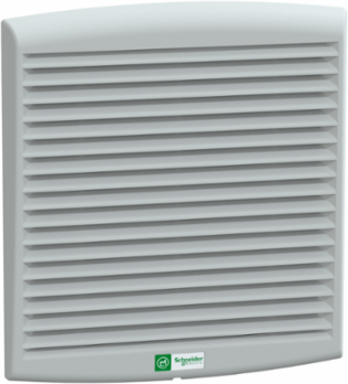

Schneider Electric NSYCAG223LPF Outlet Grille 223x223mm Cut-Out with IP54 Protection
- MPN: NSYCAG223LPF
- PPN: SCH-NSYCAG223LPF
CAD
$73.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Prisma P outlet grille plastic. 222 x 223 mm cut-out. External is 268 x 248 mm. Thermal management accessory. Compatible with ClimaSys CV fan. Fixing mode by screws or clipped. Injected thermoplastic (ASA PC). Grey RAL 7035 external part. 1 x G2 M1 synthetic standard filter incld. IP54 Protection.
Features
- Engineered to achieve an IP54 ingress protection rating, this outlet grille acts as a robust barrier against harmful dust deposits and splashing water. This ensures your sensitive internal components, like PLCs and VFDs, stay protected from harsh industrial ambient conditions, preventing unexpected short circuits and minimizing system downtime.
- This component requires a precise 223 mm x 223 mm square cutout, with overall external dimensions measuring 268 mm x 248 mm and a low-profile depth of just 18 mm. These tight tolerances allow control panel builders to efficiently map out dense spatial configurations on universal enclosure doors or side panels without interfering with interior component layouts.
- The assembly comes equipped with a high-performance G2 M1 synthetic standard filter pre-installed in its integrated support frame. This specialized media catches fine particulate matter before it can enter the enclosure while meeting stringent M1 flame retardancy standards, providing reliable, flame-safe passive filtration for high-demand infrastructure environments.
- Featuring a dual-mode fixing design, the grille can be quickly clipped directly into place for rapid assembly or securely fastened with screws for high-vibration applications. This flexibility eliminates assembly bottlenecks for systems integrators, allowing your team to choose the fastest and most secure method based on the mechanical demands of the deployment site.
- Constructed from premium, heavy-duty injected thermoplastic (ASA PC), this plastic outlet grille offers excellent impact resistance and structural stability over long-term exposure. Finished in industry-standard light grey RAL 7035, it matches standard PanelSeT and Prisma P enclosures perfectly, resisting degradation and discoloration even when exposed to ambient heat and industrial oils.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, Spain, France, United States
Physical Attributes
- Color
- external part Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 support frame, 1 external part, 1 G2 M1 synthetic standard filter
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0563066128899747, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.15718181849529386, 0.2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Material
- injected thermoplastic (ASA PC)
- Product Name
- ClimaSys CA
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 5 kg CO2 eq.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; High voltage; 2020; Europe, EU-27
- Recyclability Potential, In %
- 8
- Width Nominal
- external: 248 mm
- Accessory / Separate Part Category
- thermal management accessory
- Cut-out Dimensions
- 223 x 223 mm
- Package Weight(Lbs)
- 533.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modeby screws, clipped
Carbon Footprint Of The End-of-life Phase [C1 To C4]1 kg CO2 eq., 0.9768606597096379
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.0059551875183153
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeoutlet grille
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2012014EN
Pep Verification Date2024-06-09
Psr VersionPSR-0008-ed3-EN-2023 10 19
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y17
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalexternal: 268 mm
Certificate AgencyCSA
Accessory / Separate Part DestinationClimaSys ventilation system
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2012014EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2012014EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint5.196304278613223
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-06-09
Psr VersionPSR-0008-ed3-EN-2023 10 19
General Attributes
- Product Or Component Type
- outlet grille
ETIM
- ETIM 8
- EC000331
ETIM 9EC000331
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
