Schneider Electric NSYCAG417X120M Metal outlet grille - cut-out 417x120mm ext dim 445x148mm IP20
- MPN: NSYCAG417X120M
- PPN: SCH-NSYCAG417X120M
CAD
$19.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

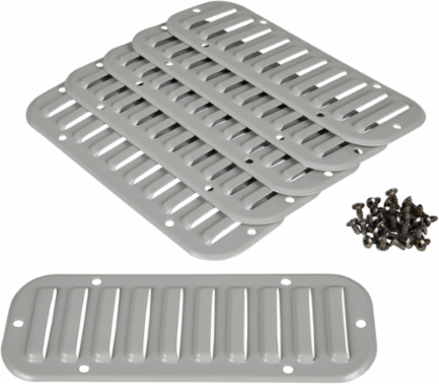

Metal louvre plate 148 x 445mm made from steel for enclosures. The kit is made of 1 fixing elements and 1 metal louvre. The external width is 148mm. Ingress protection rating (according to IEC 60529) is IP20. Fixing by screws on sides of enclosure. Cut-out dimensions is 417 x 120mm. Painted in grey (RAL 7035). Anti-corrosion protection is ensured by epoxy-polyester powder coating. Anti-corrosion protection is ensured by epoxy-polyester powder coating.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain |
|---|
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 fixing elements, 1 metal louvre |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.0336761952649827 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 3 kg CO2 eq., 3.180785601801744 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Fixing Mode | by screws |
| Mounting Location | sides of enclosure |
| Product Name | ClimaSys CA |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2012014EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | external: 445 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Cut-out Dimensions | 417 x 120 mm |
| Package Weight(Lbs) | 564.000 g |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | CPTG001_EN |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 1.117742832401399, 1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.16632372538714024, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-13 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Material | steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | metal louvre plate |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 5 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; High voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 8 |
| Width Nominal | external: 148 mm |
| Accessory / Separate Part Destination | ClimaSys ventilation system |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 3926909989 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 5.4985283548552655 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | metal louvre plate |
|---|
ETIM
| ETIM 8 | EC000331 |
|---|
| ETIM 9 | EC000331 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
