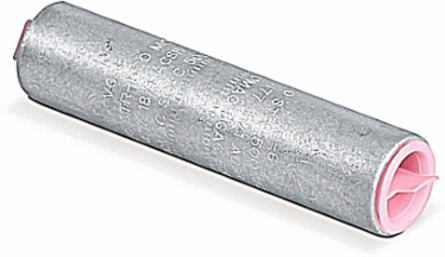

Blackburn SKAC 2/0 Aluminum Dieless Compression Splice, 6-1/2 Inch, For #2 Stranded - 2/0 ACSR Conductor
Blackburn SKAC 2/0 Aluminum Dieless Compression Splice, 6-1/2 Inch, For #2 Stranded - 2/0 ACSR Conductor
- MPN: SKAC 2/0
- UPC: 783786752133
- PPN: T-B-SKAC 2/0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$144.54/ EA
Description
Aluminum Multi-Range Dieless Compression Splices - Partial Tension, conductor size 2 str - 2/0 ACSR
Features
- Made of Aluminum for High Strength and High Conductivity.
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Sizes for Easy Identification.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. All splices are marked with conductor size for easy identification. Solid center stop ensures proper cable insertion. Connector Bores coated with Oxide Inhibitor and Capped to Prevent Oxidation. Made from Aluminum for high strength and high conductivity.
- Connection
- Crimp/Compression
- Material
- Aluminum
IGCC4669 Wire or cable compression splice
TypeAluminum Multi-Range Dieless Compression Splice
Size6-1/2 inches long
Conductor Range#2 Stranded - 2/0 ACSR
InsulationNon-Insulated
Packaging
- Outer Quantity
- 50
- Weight Uom
- 22 lbs. per 100
Outer Dimensions (inches)7.8x7.1x7.7
