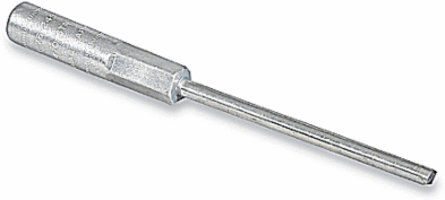

Blackburn SAPT 1/0-26 Aluminum Compression Pin Terminals, 1/0 Stranded, 2 Inch Diameter Pin, 6 Inch Length

MPN: SAPT 1/0-26
PPN: T-B-SAPT 1/0-26

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$38.17/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Compression Pin Terminals - SAPT Series, 1/0 Stranded, pin diameter 2 (.257), pin length 6, dies TU,52,BG,243 5/8, barrel insertion 1-3/4 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Made from Aluminum which provides high strength and conductivity. Oxide Inhibitor Prevents Oxidation. Metal Sealant Protects Pin/Body from Moisture Intrusion.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeAluminum Compression Pin Terminals

ApplicationConnect Aluminum and ACSR to Copper-Alloy Equipment Clamps and Elimate Cold-Flow Problems.

Wire SizeAluminum Stranded 1/0

Packaging

Inner Quantity: 50

Outer Quantity: 150

Weight Uom: 0.19 lbs. Each

Inner Dimensions (inches)10.1x5.5x5.2

Outer Dimensions (inches)11.25x10.25x10.75
