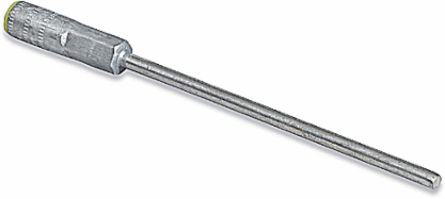

Blackburn U 5 U 2 Aluminum Compression Pin Terminals 2 Inch, Stranded #1 and #2, ACSR #2

MPN: U 5 U 2
PPN: T-B-U 5 U 2

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$21.57/ EA

Qty:

Loading add to cart quantity...

Description

Aluminum Compression Pin Terminals - U5 Series, conductor size Aluminum - Solid, 1 & 2 Stranded, 2 ACSR, installing dies 5/8,52,BG,TU,8A, solid Copper Pin 4 (.204), length (P) 2 inch.

Specifications

North American Specifications (UNSPSC)

UNSPSC: 39121432 Electrical terminals

Brand Name: Blackburn

Special Features: Eliminates cold-flow problems of Aluminum conductor in Copper clamps. Oxide Inhibitor and Metal Sealant Prevent Oxidation and Protect Pin/Body from Moisture Intrusion.

Connection: Crimp / Compression

Material: Aluminum and Copper with Tin-Plated Pin

IGCC4603 Electrical terminals

TypeAluminum Compression Pin Terminals

ApplicationConnect Aluminum and ACSR to Copper-Alloy Equipment Clamps.

Wire SizeAluminum Stranded #1 and #2, ACSR #2

Packaging

Inner Quantity: 50

Outer Quantity: 200

Weight Uom: 9 lbs. per 100

Inner Dimensions (inches)6.3x6.5x4.2

Outer Dimensions (inches)13.2x8.4x7.7
