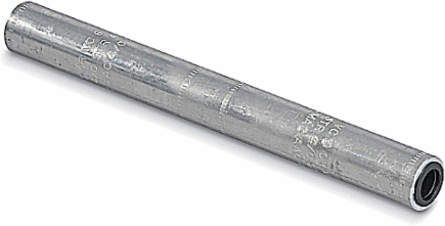

Blackburn AAC 4/0 FT Aluminum Dieless Compression Splice - 8 Inch, Dual-Rated for 1/0-4/0 Stranded
- MPN: AAC 4/0 FT
- UPC: 783786681297
- PPN: T-B-AAC 4/0 FT
CAD
$173.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Multi-Range Dieless Compression Splices AAC Series - Full Tension, conductor size 4 str - 1/0 str aluminum, 8 inch long
Features
- Solid Center Stop Ensures Proper Cable Insertion.
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Connector Bores Coated with Oxide Inhibitor and Capped to Prevent Oxidation.
- All Splices Marked with Conductor Size and Die Reference, Providing Easy Identification for Easy Installation.
- Designed to Develop 95 Percent or More of the Conductor's Rated Strength.
- Meets or Exceeds ANSI C119.4 Specification.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121449 Wire or cable compression splice
- Brand Name
- Blackburn
- Special Features
- Dual-rated. Use with Aluminum and Copper conductors. All splices are marked with conductor size for easy identification. Solid center stop ensures proper cable insertion. Connector Bores coated with Oxide Inhibitor and Capped to Prevent Oxidation
- Connection
- Crimp/Compression
- Material
- Aluminum
IGCC4669 Wire or cable compression splice
TypeAluminum Multi-Range Dieless Compression Splice - Full Tension
Size8 inches long
Conductor Range1/0 Stranded - 4/0 Stranded Aluminum
InsulationNon-Insulated
Packaging
- Outer Quantity
- 25
- Weight Uom
- 0.67 lbs. Each
Outer Dimensions (inches)1x1x1
