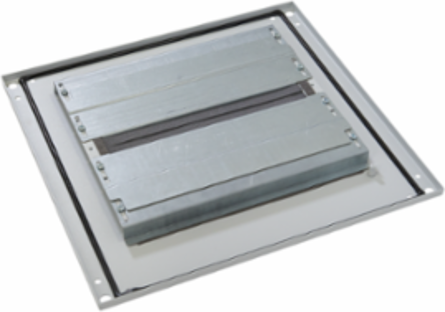

nVent Hoffman P2BGPD124G ProLine G2 Disconnect Gland Plates, 1200x400mm, Conductive, Steel

Description

Features

• Solution for widths >1000 mm wide
• Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
• Sturdy, adjustable gland plates designed to bear the weight of a person
• Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
• Galvanized or painted versions
• Sealed to maintain NEMA Type 12 rating
• Gland Plates are finished with paint over plated surfaces
• Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
• Can be used without a base if casters, levelers or frame feet are installed
• Can be rotated 180 degrees for front or rear cable entry
• Installation hardware included
• Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points

Documentation & Downloads

Specifications
