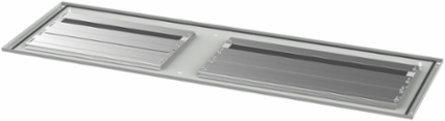

nVent Hoffman P2BGPD186G ProLine G2 Disconnect Gland Plates, 1800x600mm, Conductive, Steel
- MPN: P2BGPD186G
- UPC: 783510341732
- PPN: HOF-P2BGPD186G
CAD
$682.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine G2 Disconnect Gland Plates, 1800x600mm, Conductive, Steel
Features
- Solution for widths >1000 mm wide
- Consists of a base mounting surface and adjustable foam gasketed gland plates that permit cable entry
- Sturdy, adjustable gland plates designed to bear the weight of a person
- Number of plates varies with depth: 400 mm and 500 mm (3 plates); 600 mm (4 plates); 800 mm (6 plates); 1000 mm (8 plates)
- Galvanized or painted versions
- Sealed to maintain NEMA Type 12 rating
- Gland Plates are finished with paint over plated surfaces
- Can be used with Plinth Base (100 mm or 200 mm), 100 mm Solid Plinth Base, Mobile Base or Transportation Base
- Can be used without a base if casters, levelers or frame feet are installed
- Can be rotated 180 degrees for front or rear cable entry
- Installation hardware included
- Includes additional foam gasketing which can be applied to reposition the gasketed opening towards the center of the cabinet or to create two independent access points
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Color
- Light Gray
- Finish
- Galvanized
- Works With
- NEMA
Product FamilyProLine
Weight50.3
Color CodeRAL 7035
Thickness (T)14
