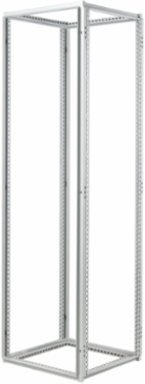

nVent Hoffman P2F16106 ProLine G2 Frames, 1600x1000x600

Description

Features

• 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
• RAL 7035 textured light-gray polyester powder paint finish
• Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
• Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
• Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
• Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
• Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
• Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
• Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
