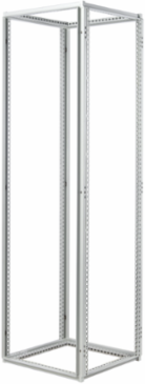

nVent Hoffman P2F2288 ProLine G2 Frame, 2200x800x800mm, Light Gray, Steel
- MPN: P2F2288
- UPC: 783510317973
- PPN: HOF-P2F2288
- UNSPSC: 39121334
CAD
$2333.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
ProLine G2 Frame used with other G2 components to configure solutions for many applications. This ProLine G2 Frame, P2F2288 item measures 2200x800x800mm with a material of Steel colored Lt Gray.
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
- Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Documentation & Downloads
Specifications
Additional
| Max Rack Mount Unit | 47 |
|---|---|
| Material | Mild Steel |
| Finish | Powder Coated, RAL 7035 textured polyester powder paint |
| Product Family | ProLine |
| Works With | NEMA |
| Mounting Provision | Subpanel, rack, grid/rail system |
| Rear Vertical Support | Removable center for frames >1200 mm width |
| Subpanel Support | Integral frame channels with EZ Load Glide Block |
| BABA | Contact Manufacturer |
| Thickness (T) | 12 gauge (2.5 mm) |
|---|---|
| Weight | 132 |
| Color | Light Gray, RAL 7035 |
| Sub Brand | ProLine |
| Frame Dimensions | 2200 x 800 x 800 mm |
| DIN Standard Hole Pattern | 25 mm, alternating rectangular and round holes |
| Front Vertical Support | None, full access for subpanel installation |
| Environmental Rating | Type 12 (with gasketed doors/covers, sold separately) |
