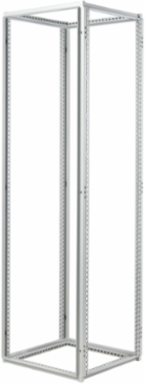

nVent Hoffman P2F18188 ProLine G2 Frames, 1800x1800x800
nVent Hoffman P2F18188 ProLine G2 Frames, 1800x1800x800
- MPN: P2F18188
- UPC: 783510317256
- PPN: HOF-P2F18188
- UNSPSC: 39121334
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2816.15/ EA
Description
ProLine G2 Frames, 1800x1800x800
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
- Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Material
- Mild Steel
- Weight
- 2
- Color Code
- RAL 7035
- Thickness (T)
- 12
- Sub Brand
- ProLine
Product FamilyProLine
Max Rack Mount Unit38
ColorLight Gray
FinishPowder Coated
Works WithNEMA
