Panduit C3LG6 Panduct® C3LG6 Flush Duct Cover
Panduit C3LG6 Panduct® C3LG6 Flush Duct Cover
- MPN: C3LG6
- UPC: 074983231201
- PPN: PAN-C3LG6
- UNSPSC: 39131712
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.14/ FT
Description

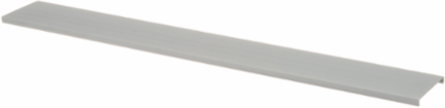

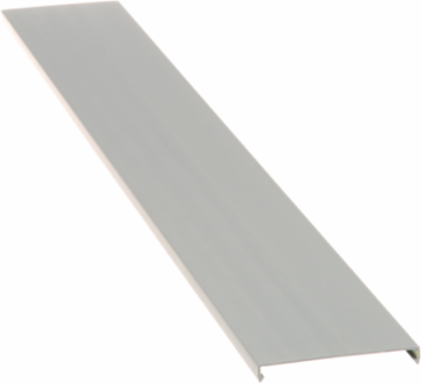

The C3LG6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.37" x 3.25" (9.4 mm x 82.6 mm) and 6' (1.83 m) long. Color Light Gray.
Specifications
Packaging Details
- UPC
- 07498323120
- Standard Package Volume Ft3
- 0.0399
- Std Package Height In
- .1
- Std Package Length In
- 72
- Std Package Width In
- 3
- Std. Pkg. UOM
- Foot
- Std. Pkg. Qty.
- 6
- Standard Carton Volume Ft3
- 0.7985
- Std Carton Height In
- 3.8
- Std Carton Length In
- 72.7
- Std Carton Width In
- 5.1
- Std Ctn Qty
- 120
- EAN
- 00074983231201
- California Pro65 Cancer
- No
- Mercury Content Indicator
- N
- Restricted Use of Hazardous Substances
- N
- Min Order Qty
- 120.0000
- Pallet Volume
- 44.715124
- RoHS Compliant
- Compliant
GTIN Package00074983231201
Standard Package Weight Pounds0.8700
Std Package Height MM2.54
Std Package Length MM1828.8
Std Package Width MM76.2
UOM EA PKPK
GTIN Carton50074983231206
Standard Carton Weight Pounds17.4000
Std Carton Height MM96.52
Std Carton Length MM1846.58
Std Carton Width MM129.54
Min. Order UOMFoot
REACH StatusN
ARRA CompliantY
Lead Content IndicatorN
Hazardous Material FlagN
Pallet Quantity6,720
Pallet Weight974.4000
Specifications
- Country of Origin
- United States
- Product Segment
- IEI
- For Use With
- Type G, Type F, Type D and Type FS Duct Base
- Note
- Base and Cover Sold Separately.
- Application
- Cover for Wiring Duct
- Overall Width (In.)
- 3.25
- Wiring Duct Style
- Flush Cover
- Color
- Light Gray
- Overall Height (mm)
- 9.4
- Overall Height (In.)
- 0.37
- Material Properties
- Lead-Free
Any Reason Not to SellN
Mount MethodSnap-On
Product TypeFlushed Duct Cover
Compatible Duct Width (mm)76.2
Compatible Duct Width (In.)3
Sub BrandPanduct®
Overall Length (ft.)6
Overall Width (mm)82.6
MaterialPVC
Overall Length (m)1.83
