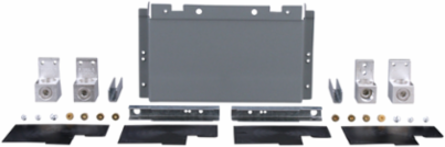

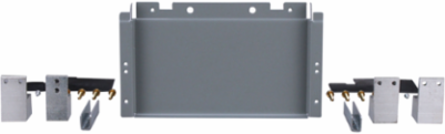

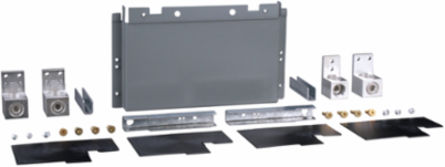

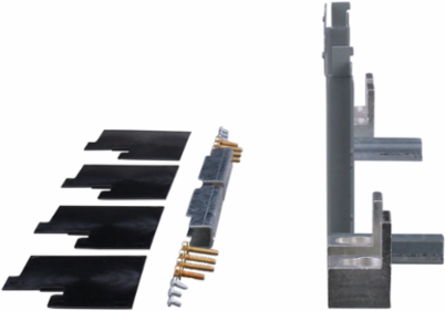

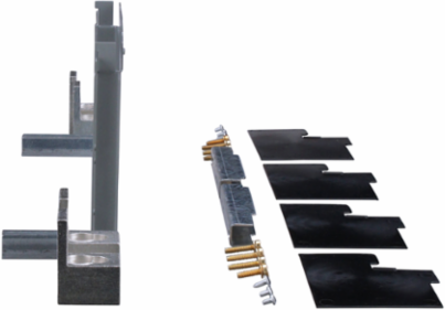

Square D NF400FTL Panelboard Lug Kit 400A Aluminum for Feed Thru Systems
- MPN: NF400FTL
- UPC: 785901538707
- PPN: SCH-NF400FTL
CAD
$978.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a lug kit used for feed thru systems. This kit is rated at 400A and is aluminum. This sub feed lug kit is UL listed and CSA certified by UL.
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- lug kit
Provided Equipmentscrew set 1 || rail extension 2 || rail splice 2 || lug 4 || cover extension 1 || terminal shield 4
Complementary
- [In] Rated Current
- 400-400 A
Tightening Torque6.8-7.3 N.m 53.48-380 mm² AWG 1/0...750 kcmil) || 6.8-7.3 N.m 53.48-177.3 mm² 2 x 350 kcmil)
Environment
- Product Certifications
- cULus
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
