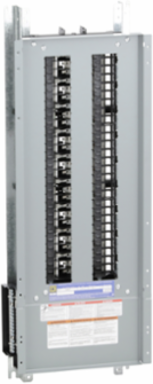

Square D NQ454L2C NQ Panelboard Interior, 225A, 54 Poles, 3 Phase, Copper Bus
- MPN: NQ454L2C
- UPC: 785901871705
- PPN: SCH-NQ454L2C
CAD
$1110.73
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NQ Panelboard Interior, 225A, 54 Poles, 3 Phase, Copper Bus
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 38 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 225 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Certificate Agency
- UL, CSA
- Connections - Terminals
- lug line AWG 6...350 kcmil aluminium, lug neutral AWG 6...350 kcmil aluminium
- Carbon Footprint Of The Distribution Phase [A4]
- 2.8884179916, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1283768157, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0.0254773433
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- COMMERCIAL
- Product Kit Identifier
- N
- Load Center Type
- main lugs
- Number Of Spaces
- 54
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2303005EN
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Height Nominal
- 33.00 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 11.3-11.3 N.m 13.30-67.43 mm² (AWG 6...AWG 2/0), 31.07-31.07 N.m 13.30-177.3 mm² (AWG 6...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (AWG 6...250 kcmil), 31.07-31.07 N.m 107.2-152 mm² (AWG 4...300 kcmil)
[Ue] Rated Operational Voltage240 V AC, 48 V DC
[Iu] Rated Interrupted Current10 kA, 22 kA, 65 kA
Carbon Footprint Of The End-of-life Phase [C1 To C4]23 kg CO2 eq., 23.0438436462
Carbon Footprint Of The Manufacturing Phase [A1 To A3]67 kg CO2 eq., 67.2040678584
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2532
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationCommercial
Energy Efficiency OptimizedFalse
Materialcopper
Phase3 phase 4 wires
Product Or Component Typeinteriors
Software Versionv5.9.4
Total Lifecycle Carbon Footprint93 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508.00 mm x 146.05 mm and NAME 1& 10- followed standard: UL 67 UL 50E and CSA22.2
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential, In %91
Width Nominal10.44 in
Package Weight(Lbs)10.179 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 93.2901836552
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303005EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
Product Or Component Typeinteriors
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
