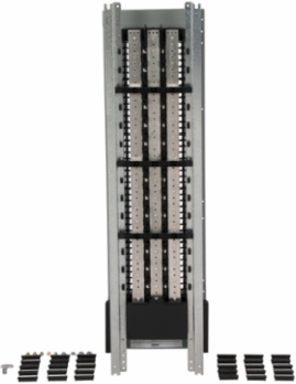

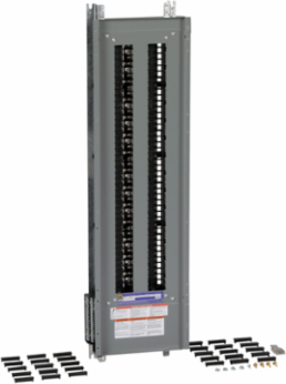

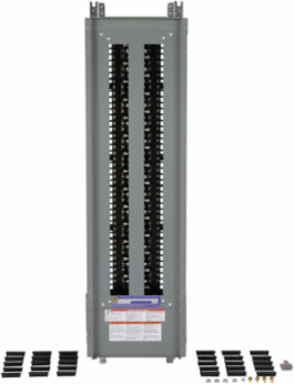

Square D NQ484L2 NQ Panelboard Interior, 225A, Aluminum Bus, 84 Pole Spaces, 3 Phase, 4 Wire
- MPN: NQ484L2
- UPC: 785901502517
- PPN: SCH-NQ484L2
CAD
$1520.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ Panelboard interiors may be used in a wide variety of applications including: commercial buildings; industrial buildings; data centers; stadiums; and offices. NQ Panelboards are versatile panelboards that feature a wide selection of bolt-on and plug-on branch circuit breakers, integral main circuit breakers, branch mounted SPDs, and a wide variety of ready to install accessory kits. The interiors are field convertible to support top or bottom feed. This main lugs interior is rated 225A for 240VAC and 48VDC, has a plated aluminum bus, and 84 pole spaces. NQ Panelboards are convertible from main lugs to main circuit breaker. NQ Panelboards offer 200% rated neutrals for nonlinear loads. Factory installed options include phenolic nameplates, power monitoring of mains and branch circuits, split bus interiors, and neutral assemblies which support up to 36 100A branch circuit breakers. NQ Panelboards are available with IP2X per IEC 60529 barriers for UL service entrance applications. Interior has an interrupt current rating of up to 65kA (depending upon the circuit breakers installed). This NQ panelboard interior is UL listed for applications in the USA and Canada. Interior accepts QOB, QOBVH and QHB bolt-on and QO, QOVH and QH plug-on branch circuit breakers. Standard mechanical main lug connections will accept copper or aluminum wire. NQ Panelboard interiors are available with plated aluminum or copper bus. 100A branch circuit breakers may be installed on both sides of NQ Panelboard interiors.
Features
- Engineered with 84 pole spaces, this interior provides the expansive density required for high-circuit count commercial and industrial applications. This massive real-world capacity eliminates the need for installing secondary subpanels, saving you substantial labor hours and material costs on busy project sites.
- This 225-amp unit is rated for 240VAC and 48VDC environments, running a highly efficient 3-phase, 4-wire configuration. It serves as an ultra-reliable backbone for lighting, appliance, and light industrial branch motor loads, meeting rigorous system requirements with ease.
- Designed for ultimate job site flexibility, this interior natively accepts Square D QO plug-in and QOB bolt-on miniature circuit breakers, including standard, QOB-VH, and QHB variants. You can secure high-performance electrical protection without having to source specialized, proprietary mounting equipment.
- This interior is perfectly calibrated to drop into standard 20-inch wide by 50-inch high Schneider Electric MH50 enclosure boxes using NC50 series trim covers. The standardized dimensions guarantee a seamless, flush installation that matches existing building footprints and aesthetic requirements.
- Featuring an intelligent, symmetrical design, this main lugs panelboard interior is fully field-convertible for both top and bottom feed wiring layouts. This field adaptability allows you to easily overcome unexpected conduit entry obstructions behind the walls without delaying your construction schedule.
- Built to the highest industry benchmarks, this NQ Series interior carries full UL listing and CSA certification to satisfy code enforcement officers. Its durable, plated aluminum busbar assembly guarantees continuous electrical conductivity and long-term corrosion resistance in demanding operational environments.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Physical Attributes
- Enclosure Nominal Height
- 50 in
Enclosure Nominal Width20 in
Complementary Attributes
- Line Rated Current
- 225 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Circuit Breaker Type
- QOB, QOB-VH, QHB
- Certificate Agency
- CSA, UL
- [Iu] Rated Interrupted Current
- 10 kA, 22 kA, 65 kA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 27 kg CO2 eq., 27.4922803531
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 76 kg CO2 eq., 75.8230945637
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Energy Efficiency Optimized
- False
- Material
- aluminium
- Phase
- 3 phase 4 wires
- Product Or Component Type
- interiors
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 152 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 1270 mm x 508 mm x 146.05 mm,and NEMA 1& 10- followed standard: UL 67 UL 50E and CSA22.2
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 100.21
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
- Height Nominal
- 45 in
- [Ue] Rated Operational Voltage
- 240 V AC48 V DC
- Package Weight(Lbs)
- 11.79 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Tightening Torque4.52-5.65 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG), 11.3-11.3 N.m 13.30-67.43 mm² (6 AWG...2/0 AWG)31.07-31.07 N.m 13.30-177.3 mm² (6 AWG...350 kcmil), 31.07-31.07 N.m 13.30-126.7 mm² (6 AWG...250 kcmil)31.07-31.07 N.m 107.2-152 mm² (4 AWG...300 kcmil)
Connections - Terminalslug line 6 AWG...350 kcmil aluminium, lug neutral 6 AWG...350 kcmil aluminium
Carbon Footprint Of The Distribution Phase [A4]3.3986206327, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.435267468, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]45 kg CO2 eq., 44.7040371444
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Load Center Typemain lugs
Number Of Spaces84
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Pep CodeENVPEP2303004EN
Pep Verification Date2023-07-15
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; MX
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; MX / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; CA
Recyclability Potential In %93
Width Nominal10.44 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8537109150
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 151.8533001619
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-07-15
- Psr Version
- PSR-0005-ed2-2016 03 29
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303004EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2303004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 3 phase 4 wires
Product Or Component Typeinteriors
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
