Klein Tools

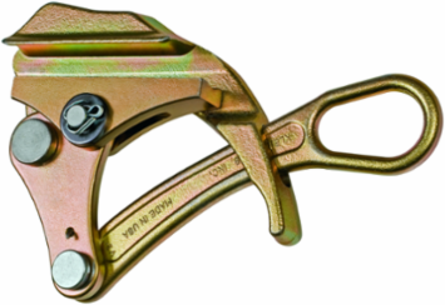

Klein Tools KT4500 Parallel Jaw Grip 0.18-0.60 Inch Cable Diameter, Max Load 5000 lbs

Parallel Jaw Grip 0.18-0.60 Inch Cable Diameter, Max Load 5000 lbs
  • MPN: KT4500
  • UPC: 092644477508
  • PPN: KLT-KT4500
  • UNSPSC: 27111712

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$311.68/ EA

Description

This versatile grip holds a wider range of ACSR cable sizes reducing the number of grips needed. Klein Parallel Jaw Grips are lightweight and compact. The round jaw holds 0.18 - 0.60-inch diameter cable with a maximum safe load of 5000 lbs. Features a spring that closes the grip on the cable to maintain the initial position.

Features

  • Versatile grip hold a wider range of ACSR cable sizes reducing the number of grips needed
  • Round serrated jaw holds 0.18 to 0.60-Inch (4.57 to 15.20 mm) diameter cable range
  • Spring closes grip on cable to hold the initial position
  • Spring‐loaded for easy one‐handed operation
  • Made in USA
  • Large opening in the handle accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Max Safe Load of 5000-Pound (2268 kg)
  • Sawtooth Jaw Profile Resists Build-up

Specifications

Specifications

Application
Wire Pulling
Overall Width
1.9" (4.8 cm)
Cable Type
ACSR, AAC, Copper
Jaw Type
Round
Type
Parallel Jaw Grip
Maximum Safe Load
5000 lb (2268 kg)
Spring
Yes
Swing Latch
No
Height
1.0000 in
Depth
8.0000 in
Jaw Length4" (10.2 cm)
Overall Height4.6" (11.7 cm)
MaterialSteel
Overall Length10.9" (27.7 cm)
Cable Diameter0.18" to 0.6" (4.57 to 15.2 mm)
Hot LatchNo
Locking HandleNo
Teeth TypeCoarse
Width5.0000 in
Weight3.7500 lbs
