Klein Tools

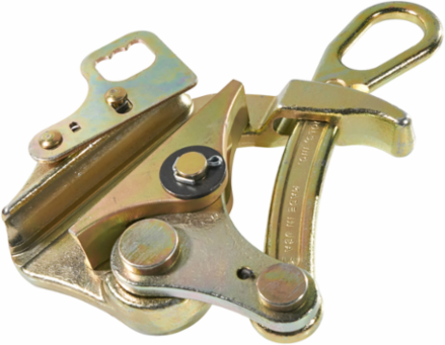

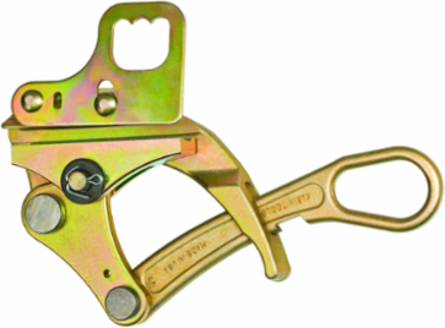

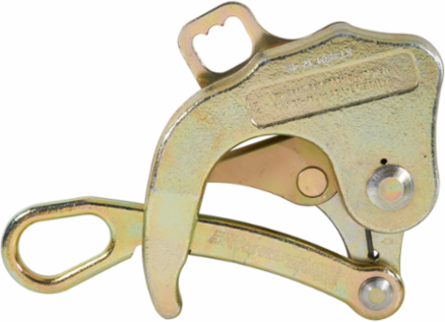

Klein Tools KT4801 Parallel Jaw Grip 0.70 to 1.25 Inch Cable Diameter, Max Load 12,000 lb

Parallel Jaw Grip 0.70 to 1.25 Inch Cable Diameter, Max Load 12,000 lb
Parallel Jaw Grip 0.70 to 1.25 Inch Cable Diameter, Max Load 12,000 lb
Parallel Jaw Grip 0.70 to 1.25 Inch Cable Diameter, Max Load 12,000 lb
  • MPN: KT4801
  • UPC: 092644477577
  • PPN: KLT-KT4801
  • UNSPSC: 27111712

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$757.80/ EA

Description

Klein Tools has been manufacturing high quality grips for more than 135 years. Klein Parallel Jaw Grips are lightweight and compact. They can pull an exceptionally wide range of cable types and sizes.

Features

  • Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
  • Hot latch closes automatically to guard against grip accidently disengaging from wire
  • Round jaw provides maximum contact with the cable minimizing deformation
  • Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Made in USA
  • Locking handle keeps jaw open while grip is placed on cable with a hot stick
  • Max Safe Load of 12,000-Pound (5443 kg)
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
  • Hot Latch, Spring, Locking Handle

Specifications

Specifications

Application
Wire Pulling
Cable Diameter
0.7" to 1.25" (17.78 to 31.75 mm)
Cable Type
ACSR, AAC, Copper
Hot Latch
Yes
Locking Handle
Yes
Teeth Type
Coarse
Overall Width (Inch)
2.5
Overall Length (Inch)
13.4
Jaw Length (Inch)
5.125
Maximum Safe Load (kg)
5443.1
Jaw Length (cm)
13
Weight (kg)
4.1
Width
8.0000 in
Weight
9.0000 lbs
Jaw TypeRound
MaterialSteel
TypeParallel Jaw Grip
SpringYes
Swing LatchNo
Overall Width (cm)6.4
Overall Height (Inch)7.6
Maximum Safe Load (lb)12000
Overall Length (cm)34
Weight (lb)9
Overall Height (cm)19.3
Height1.0000 in
Depth10.0000 in
