Klein Tools

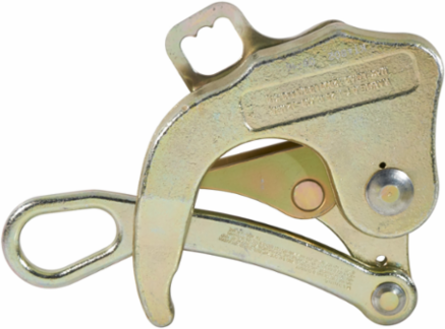

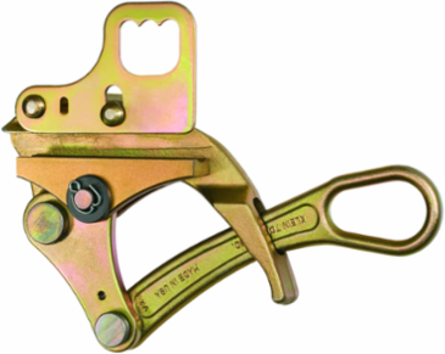

Klein Tools KT4802 Hot Latch Parallel Jaw Grip, 0.70" to 1.25" Cable Diameter, 12,000 lb Capacity

Hot Latch Parallel Jaw Grip, 0.70" to 1.25" Cable Diameter, 12,000 lb Capacity
Hot Latch Parallel Jaw Grip, 0.70" to 1.25" Cable Diameter, 12,000 lb Capacity
  • MPN: KT4802
  • UPC: 092644477584
  • PPN: KLT-KT4802
  • UNSPSC: 27111712

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$757.80/ EA

Description

The Klein KT4802 Forged Parallel Jaw Grips with Hot-Latch's large round eyelet opening in the handle is perfect for accommodating a wide variety of hooks on hoists, winches and tackle blocks. The hot latch closes automatically to guard against grip accidently disengaging from the wire. The KT4802 has a jaw length of 5-1/8 - Inches.

Features

  • Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
  • Round jaw provides maximum contact with the cable minimizing deformation
  • Hot latch closes automatically to guard against grip accidently disengaging from wire
  • Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
  • Made in USA
  • Maximum Safe Load of 12,000-pounds (5443 kg)
  • Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
  • Hot Latch

Specifications

Specifications

Type
Parallel Jaw Grip
Jaw Type
Round
Material
Steel
Hot Latch
Yes
Locking Handle
No
Teeth Type
Coarse
Overall Width (Inch)
2.5
Overall Length (Inch)
13.4
Jaw Length (Inch)
5.125
Maximum Safe Load (kg)
5443.1
Jaw Length (cm)
13
Weight (kg)
4.1
Width
7.5000 in
Weight
9.0000 lbs
Cable Diameter0.7" to 1.25" (17.78 to 31.75 mm)
ApplicationWire Pulling
Cable TypeACSR, AAC, Copper
SpringYes
Swing LatchNo
Overall Width (cm)6.4
Overall Height (Inch)7.6
Maximum Safe Load (lb)12000
Overall Length (cm)34
Weight (lb)9
Overall Height (cm)19.3
Height2.2500 in
Depth13.5000 in
