Schneider Electric NSYSPMP4080 Partial Mounting Plate 31.3 Inch x 31.5 Inch Galvanized Steel
- MPN: NSYSPMP4080
- PPN: SCH-NSYSPMP4080
- UNSPSC: 39121321
CAD
$147.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

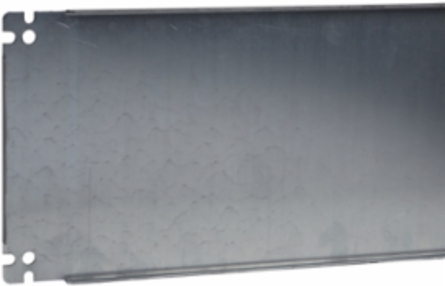

Spacial SF/SM partial mounting plate. 396 x 800 mm. Multi-purpose mounting accessory. Partial plain. Fixing mode on structure. Horizontal fixing on cross rails variant. Galvanised Steel. Set of 1, fixing elements included.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|---|
| Width | 27.76 in |
| Height | 15.63 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 mounting plate, fixing elements |
| Local Data Status | Publishable |
| Return Indicator | N |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Material | galvanised steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Height Nominal | nominal: 400 mm |
| Width Nominal | nominal: 800 mm |
| Accessory / Separate Part Category | mounting accessory |
| Customs Code | 7326190080 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Local Publishable Date | 2026-04-18 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Fixing Mode | by fixing element - on structure |
| Mounting Plate Description | partial plain |
| Product Or Component Type | mounting plate |
| Range | PanelSeT |
| Sustainable Packaging | No |
| Height Useful | 397 mm |
| Width Real | 705 mm |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Environmental Disclosure | ENVPEP2202003EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2202003EN |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | mounting plate |
|---|
ETIM
| ETIM 8 | EC000213 |
|---|---|
| ETIM 10 | EC000213 |
| ETIM 9 | EC000213 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
