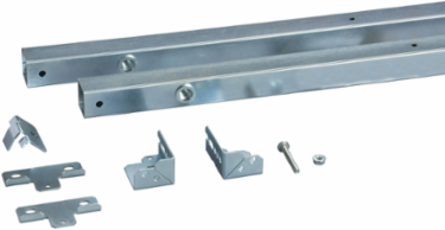

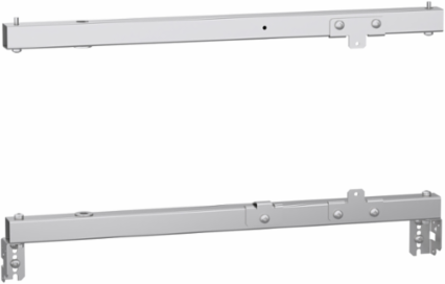

Schneider Electric NSYRSWSP6 Set of 2 19 Inch Swing Rack Supports, 600 mm Adjustable Depth, Steel
- MPN: NSYRSWSP6
- PPN: SCH-NSYRSWSP6
CAD
$280.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF/SM partial 19inch swing rack supports. 599 mm. Electronic application. Cross rails for height/depth adjustment or 19 inch multiple bracket support. Fixing by fixing element for structure of enclosure. Adjustable in depth every 25 mm. Steel, zinc coated surface. Set of 2 supports.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 25.59 in
Height1.77 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Application
- electronic application, multi-purpose
- Mounting Support
- cross rails, for height or depth adjustment, 19" multiple bracket
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 4 kg CO2 eq., 4.273840944
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.89942537
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- fixing elements2 support
- Fixing Mode
- by fixing element structure of enclosure
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- zinc coated
- Total Lifecycle Carbon Footprint
- 13 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 45 mm
- Width Nominal
- nominal: 600 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 1.818 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The Distribution Phase [A4]0.349961882, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.4031124, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-04-15
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in height or depth with a pitch of 25 mm
Energy Efficiency OptimizedFalse
Materialsteel
Product Or Component Typeswing rack support
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Recyclability Potential In %98
Height Useful45 mm
Width Real650 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code9403999045
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 12.9263406
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- swing rack support
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
