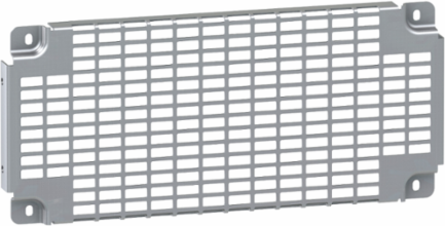

Schneider Electric NSYSTMP2260 Galvanized Steel Perforated Mounting Plate 600mm x 225mm
- MPN: NSYSTMP2260
- PPN: SCH-NSYSTMP2260
CAD
$73.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Constructed from durable galvanized steel, this perforated mounting plate is designed for use within Schneider Electric's PanelSeT range, including models SF, SM, and SFX. With a nominal width of 600 mm and a height of 225 mm, it features a Telequick perforated design that facilitates versatile mounting options and efficient airflow. The plate is equipped with cut-out dimensions of 11 x 26 mm, allowing for easy integration into various electrical enclosures. This multi-purpose accessory is built to withstand demanding environments, ensuring reliable performance and compatibility with a range of fixing elements.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India
- Width
- 20 in
Height8.86 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Warranty In Months
- 18
- Height Nominal
- fixing centers: 200 mm
- Width Nominal
- nominal: 600 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cut Out Dimensions11 x 26 mm
Fixing Modeby fixing element - on structure
Mounting Plate DescriptionTelequick perforated
Product Or Component Typemounting plate
RangePanelSeT
Surface Finishzinc coated
Accessory Separate Part Categorymounting accessory
Pep CodeENVPEP2202003EN
Height Useful225 mm
Width Real508 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
