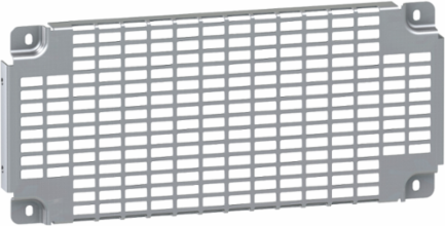

Schneider Electric NSYSTMP45120 Perforated Mounting Plate 1200mm x 450mm, Galvanized Steel
- MPN: NSYSTMP45120
- PPN: SCH-NSYSTMP45120
CAD
$208.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility, this perforated mounting plate from Schneider Electric is an essential component for electrical enclosures, measuring 1200mm in width and 450mm in height. Constructed from galvanized steel, it boasts a durable zinc-coated finish that ensures longevity and resistance to corrosion. The mounting plate is engineered for multi-purpose applications and features convenient cut-out dimensions of 11 x 26 mm, making it adaptable for various installations. With a robust design that includes fixing elements for secure attachment, this mounting accessory is compatible with the PanelSeT range, ensuring seamless integration into your electrical systems.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Italy
- Width
- 43.62 in
Height17.72 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Fixing Mode
- by fixing element - on structure
- Mounting Plate Description
- Telequick perforated
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Height Useful
- 450 mm
- Width Real
- 1108 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cut Out Dimensions11 x 26 mm
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Height Nominalfixing centers: 425 mm
Width Nominalnominal: 1200 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
