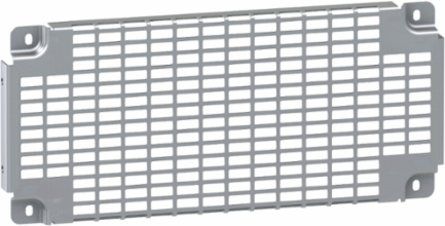

Schneider Electric NSYSTMP4580 Perforated Mounting Plate 800mm x 450mm Galvanized Steel
- MPN: NSYSTMP4580
- PPN: SCH-NSYSTMP4580
CAD
$129.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and strength, this perforated mounting plate from Schneider Electric is an essential component for electrical enclosures. Made from durable galvanized steel, it measures 800mm in width and 450mm in height, making it suitable for a variety of applications. The Telequick perforated design allows for easy installation and adjustment, while the zinc-coated surface finish ensures longevity and resistance to corrosion. With a fixing center height of 425mm to 450mm, this mounting plate is compatible with several models in the PanelSeT range, providing a reliable solution for your mounting needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain, India
- Width
- 27.87 in
Height17.72 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Fixing Mode
- by fixing element - on structure
- Mounting Plate Description
- Telequick perforated
- Product Or Component Type
- mounting plate
- Range
- PanelSeT
- Surface Finish
- zinc coated
- Accessory Separate Part Category
- mounting accessory
- Pep Code
- ENVPEP2202003EN
- Height Useful
- 450 mm
- Width Real
- 708 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Cut Out Dimensions11 x 26 mm
Energy Efficiency OptimizedFalse
Materialsteel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Warranty In Months18
Height Nominalfixing centers: 425 mm
Width Nominalnominal: 800 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
