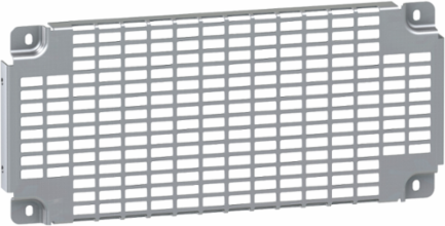

Schneider Electric NSYSTMP60100 Telequick Perforated Mounting Plate, Galvanized Steel, 1000 mm x 600 mm
- MPN: NSYSTMP60100
- PPN: SCH-NSYSTMP60100
CAD
$206.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Designed for versatility and durability, this perforated mounting plate from Schneider Electric is an essential accessory for electrical enclosures. Crafted from galvanized steel, it measures 1000 mm in width and 600 mm in height, making it compatible with various PanelSeT models including SF, SM, and SFX. The Telequick perforated design allows for efficient mounting and installation, while the robust zinc-coated finish ensures longevity and resistance against corrosion. With a focus on practicality, this mounting plate comes with necessary fixing elements and is ideal for multi-purpose applications, providing a reliable solution for your electrical setup.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Italy
- Width
- 35.75 in
Height23.62 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 mounting plate, fixing elements
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Material
- steel
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Sustainable Packaging
- No
- Height Nominal
- fixing centers: 575 mm
- Width Nominal
- nominal: 1000 mm
- Accessory / Separate Part Category
- mounting accessory
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Publishable Date2025-12-11
Stocking FlagY
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1916
China Rohs In ScopeNo
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby fixing element - on structure
Mounting Plate DescriptionTelequick perforated
Product Or Component Typemounting plate
RangePanelSeT
Surface Finishzinc coated
Pep CodeENVPEP2202003EN
Height Useful600 mm
Width Real908 mm
Cut-out Dimensions11 x 26 mm
Package Weight(Lbs)4.420 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2202003EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2202003EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- mounting plate
ETIM
- ETIM 8
- EC000213
ETIM 9EC000213
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
