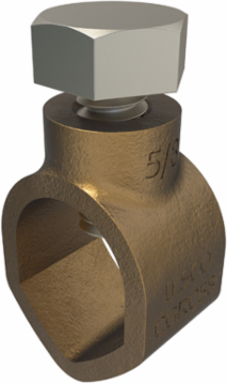

ILSCO CGRC-58-B4 Permaground Bronze Ground Rod Clamp, Conductor Range 2-10, Ground Rod Size 5/8in, Rebar Size #5, UL, Bag of 4
- MPN: CGRC-58-B4
- UPC: 783669027037
- PPN: ILC-CGRC-58-B4
- UNSPSC: 39121408
CAD
$72.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Permaground Economy Ground Rod Clamp, Cast bronze material, UL 467 Listed, 1 conductors, Drive Type Main 19/32 External Hex, 5/8 nominal ground rod, bag quantity 4,
Documentation & Downloads
Specifications
Key Specifications
| UPC Code | 78366902703 |
|---|---|
| Dual Rated | FALSE |
| Ground Rod Size | 8-May |
| Drive Type Main | External Hex |
| Length (IN) | 8.4 |
| Width (IN) | 3 |
| Height (IN) | 0.625 |
| Weight (LB) | 0.480664205 |
| Conductor Material | Copper |
| UL Control Number | 667P |
| UL / CULUS Specification | UL 467 Listed |
| Number of Conductors | 1 |
| UNSPSC Code | 39121408 |
|---|---|
| Rebar Size(s) Main | #5 (5/8) |
| Drive Size Main | 19/32 |
| Wire Binding Screw Size (mm) | 965.2 |
| Length (mm) | 213.36 |
| Width (mm) | 76.2 |
| Height (mm) | 15.875 |
| Material | Cast bronze |
| Direct Burial | TRUE |
| UL File Number | E34440 |
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
| Bag Quantity | 4 |
