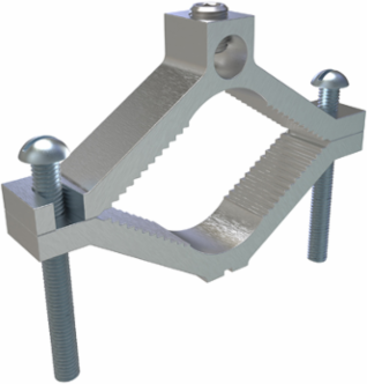

ILSCO AGC-4 Permaground Aluminum Ground Clamp, Conductor Range 250-6, Pipe Sizes 2-1/2 to 4in, UL
- MPN: AGC-4
- UPC: 783669000641
- PPN: ILC-AGC-4
CAD
$74.77
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Permaground Aluminum Ground Clamp, Conductor Range 250-6, Pipe Sizes 2-1/2 to 4in, UL
Documentation & Downloads
Specifications
Key Specifications
| Height | 4.063 in | 103.2002 mm |
|---|---|
| Weight | 0.276 lbs |
| Length | 6.312 in | 160.3248 mm |
|---|---|
| Width | 1 in | 25.4 mm |
Dimensions
| Drive Size Main | 5/16 |
|---|---|
| Height BX (IN) | 4.25 |
| Length (mm) | 160.3248 |
| Width BX (IN) | 7.75 |
| Drive Type Main | Internal Hex |
|---|---|
| Height (mm) | 103.2002 |
| Weight BX (LB) | 3.7109 |
| Width (mm) | 25.4 |
Testing Standards
| Prop65 Compliance | This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation |
|---|---|
| UL / CULUS Specification | UL 467 Listed |
| UL Control Number | 667P |
|---|---|
| UL File Number | E34440 |
Additional Class Attributes
| Connection | Mechanical |
|---|---|
| Number of Ports / Wireways | 1 |
| Number of Conductors | 1 |
|---|---|
| Wire Orientation | Parallel |
Material and Finish
| Clamping Hardware Finish | Zinc Clear Trivalent Chromate |
|---|---|
| Conductor Material | Copper, Aluminum |
| Material | Aluminum |
| Wire Binding Hardware Material | Aluminum |
| Clamping Hardware Material | Steel |
|---|---|
| Connector Finish | Tin |
| Wire Binding Hardware Finish | Tin |
Conductor Ranges
| Conductor Range AL Stranded (Primary, run, main, line) | 250 kcmil - 6 Str |
|---|---|
| NPS/IPS Pipe Size | 4, 3-1/2, 3, 2-1/2 |
| Conductor Range CU Stranded (Primary, run, main, line) | 250 kcmil - 6 Str |
|---|
Additional Technical Specifications
| Conductor Type | Stranded |
|---|
General
| Bag Quantity | 1 |
|---|---|
| Direct Burial | No |
| NEMA Code | S-573-2 |
| Carton Quantity Description | STD PACK QTY 4 |
|---|---|
| Dual Rated | Yes |
| UPC Code | 78366900064 |
Bolt and Screw Sizes
| Clamping Bolt Size | 3/8-16 |
|---|
| Wire Binding Torque | 275 |
|---|
