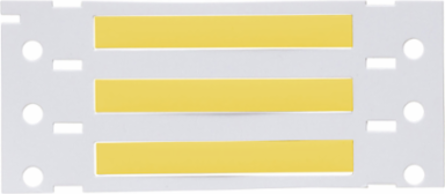

Brady 2HX-187-2.3-YL PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeves, 0.187" Dia x 2.3" W, Yellow
Brady 2HX-187-2.3-YL PermaSleeve HX Heat Shrink Double Sided Wire Marking Sleeves, 0.187" Dia x 2.3" W, Yellow
- MPN: 2HX-187-2.3-YL
- UPC: 662820824299
- PPN: BRD-2HX-187-2.3-YL
- UNSPSC: 55121612
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3494.02/ EA
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features

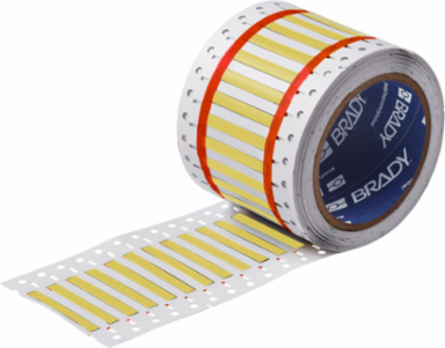

- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Specifications
Specifications
- Applications
- Wire and Cable Labeling
- Color
- Yellow
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 1
- Shrink Ratio
- 2:1
- Total Quantity
- 2500
- Brady Material Number
- B-7642
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
- Diameter as Supplied (in/ft/yd)
- 0.187 in
- Dimensions
- 0.335 in H
- Dimensions 2
- 0.335 in H
- Height (mm/cm/m)
- 8.5 mm
- Maximum Service Temperature °F
- 248 °F
- Maximum Wire Diameter (mm/cm/m)
- 3.8 mm
- Minimum Service Temperature °F
- -40 °F
- Minimum Wire Diameter (mm/cm/m)
- 2.4 mm
- Recovered Diameter (mm/cm/m)
- 2.4 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 4.8 mm Dia x 58.4 mm W
- Sleeve Width (mm/cm/m)
- 58.4 mm
- Wire Diameter Range
- 0.094 in to 0.15 in
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesDouble-Side Printable
Quantity per Roll2500
Recommended RibbonR6402
Suggested Ribbon SeriesR4300; R6000 Halogen Free; R6400; R6600
Trade NamePermaSleeve®
Label PropertiesHeat Shrink Sleeves
Material PropertiesHeat-shrinkable
SAP B-NumberB-7642
Diameter as Supplied (mm/cm/m)4.8 mm
Dimensions (Metric)8.5 mm H
Height (in/ft/yd)0.335 in
Maximum Service Temperature °C120 °C
Maximum Wire Diameter (in/ft/yd)0.15 in
Minimum Service Temperature °C-40 °C
Minimum Wire Diameter (in/ft/yd)0.094 in
Recovered Diameter (in/ft/yd)0.094 in
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)0.187 in Dia x 2.3 in W
Sleeve Width (in/ft/yd)2.3 in
Vertical Repeat0.625 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
