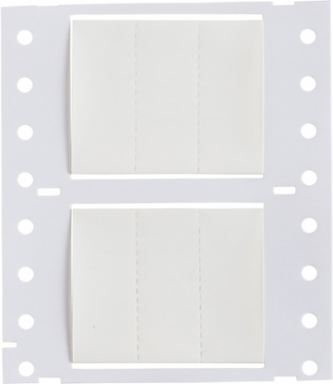

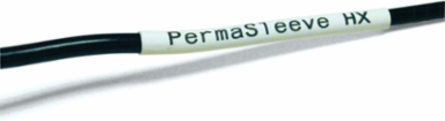

Brady HX-1000-2-WT-J-3 PermaSleeve HX Heat Shrink Wire Marking Sleeves, White, 1" Dia x 0.67" W, Roll of 7500 Each
- MPN: HX-1000-2-WT-J-3
- UPC: 662820822929
- PPN: BRD-HX-1000-2-WT-J-3
- UNSPSC: 55121612
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Heat-Shrink PermaSleeve® HX Polyolefin (B-7642) Wire Marking Sleeves are 2:1 heat shrinkable, high-temperature rated, highly flame retardant and very flexible.
Features
- Supplied roll form in a flattened format on a carrier designed for use with computer driven printers
- Meets SAE-AMS-DTL-23053/5 Class 1 & 3, SAE-AS-81531, MIL-STD-2002
- Tested per ASTM E162 and ASTM E662
- Operating temperature of -40°F to 248°F (-40°C to 120°C)
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Wire and Cable Labeling
- Color
- White
- Finish
- Matte
- Label/Media Format
- Roll
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Quantity per Row
- 3
- Shrink Ratio
- 2:1
- Suggested Ribbon Series
- R4300; R6000 Halogen Free; R6400; R6600
- Trade Name
- PermaSleeve®
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Heat-shrinkable
- SAP B-Number
- B-7642
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 42.2 mm H
- Height (in/ft/yd)
- 1.66 in
- Maximum Service Temperature °C
- 120 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.95 in
- Minimum Service Temperature °C
- -40 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.5 in
- Minimum Wire Gauge
- 2/0 AWG
- Recovered Diameter (mm/cm/m)
- 12.7 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 17 mm W
- Sleeve Width (mm/cm/m)
- 17 mm
- Wire Diameter Range
- 0.5 in to 0.95 in
Brand NameBrady®
Enables Industry ComplianceASTM D 570; ASTM D 638; ASTM D 792; ASTM D 876; ASTM D 882; ASTM G 21; Halogen Free (DIN VDE 0472 Part 815); MIL-STD-202; SAE-AMS-DTL-23053; SAE-AMS-STD-104 Class 1; SAE-AS-81531; UL Recognized; VW-1
For Use with PrinterBBP®72 Label Printer; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Quantity per Roll7500
Recommended RibbonR6402
Sleeve SlitsYes
Total Quantity7500
Brady Material NumberB-7642
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Self-Extinguishing; UV-Resistant; Weather-Resistant
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.2 mm
Maximum Service Temperature °F248 °F
Maximum Wire Diameter (mm/cm/m)24.1 mm
Minimum Service Temperature °F-40 °F
Minimum Wire Diameter (mm/cm/m)12.7 mm
Recovered Diameter (in/ft/yd)0.5 in
Roll Width (in/ft/yd)2 in
Sleeve Size (in/ft/yd)1 in Dia x 0.67 in W
Sleeve Width (in/ft/yd)0.67 in
Vertical Repeat2 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
