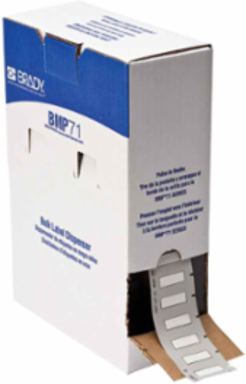

Brady BM71-187-1-342 PermaSleeve Polyolefin Wire Marking Sleeves, 0.187 Inch Dia x 1 Inch W, 1000 Pack
- MPN: BM71-187-1-342
- UPC: 662820800606
- PPN: BRD-BM71-187-1-342
- UNSPSC: 55121612
CAD
$578.99
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

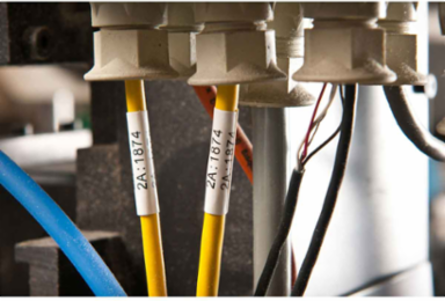

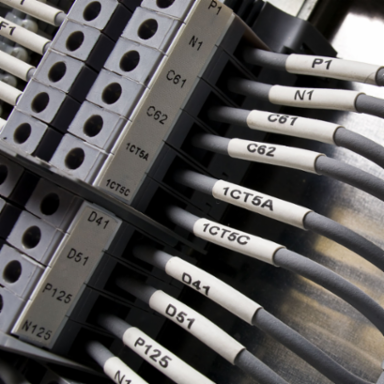

The B-342 Polyolefin PermaSleeve material is a non-adhesive, heat-shrinking sleeve that fits around wires or cables for easy permanent identification
Features
- 3:1 heat-shrinking wire sleeve is ideal for labeling in harsh environments and is resistant to chemicals, grease, oil and cleaning agents
- Polyolefin wire marking sleeves have a smudge-proof finish and print in black text on a white background
- PermaSleeve labels provide wire identification that combines speed, ease of use and permanence for long-lasting, high quality identification
- Cold resistant and flame-retardant with an operating temperature of -67° F to 275° F (-55° C to 135° C)
- PermaSleeve wire labels are ideal for electrical contractors, maintenance crews and industrial professionals
Documentation & Downloads
Specifications
Key Specifications
| Applications | Electrical Labeling; Wire and Cable Labeling |
|---|---|
| Bulk Part | Bulk Part |
| Diagram | Icon 14 (v) |
| Finish | Matte |
| Label/Media Format | Bulk Roll |
| Max. Lines of Text | 2 |
| Print Technology | Thermal Transfer |
| Printer and Label Applications | Wire & Cable |
| Printer Compatibility (Print) | M611; BMP61; BMP71 |
| Quantity per Row | 1 |
| Ribbon Series | R4300 |
| Shrink Ratio | 3:1 |
| Total Qty per Pack | 1000 Sleeve(s) / Box |
| Trade Name | BMP®71 PermaSleeve® |
| Label Properties | Heat Shrink Sleeves |
| Material Properties | Flame-retardant; Heat-shrinkable |
| SAP B-Number | B-342 |
| Diameter as Supplied (mm/cm/m) | 4.8 mm |
| Dimensions (Metric) | 25.78 mm W x 8.50 mm H |
| Height (in/ft/yd) | 0.335 in |
| Maximum Service Temperature °C | 135 °C |
| Maximum Wire Diameter (in/ft/yd) | 0.15 in |
| Maximum Wire Gauge | 10 AWG |
| Minimum Service Temperature °F | -67 °F |
| Minimum Wire Diameter (mm/cm/m) | 1.57 mm |
| Recovered Diameter (in/ft/yd) | 0.062 in |
| Roll Width (in/ft/yd) | 1 in |
| Sign Size-General | 0.335 in x 1.1677 in |
| Sleeve Size (in/ft/yd) | 0.187 in Dia x 1 in W |
| Sleeve Width (in/ft/yd) | 1 in |
| Vertical Repeat | 0.75 in |
| Wire Diameter Range | 0.062 in to 0.15 in |
| Brand Name | Brady® |
|---|---|
| Color | White |
| Enables Industry Compliance | ASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized |
| For Use with Printer | BMP®61 Labeling System; BMP®71 Label Printer; BradyPrinter™ M611; TLS 2200® Thermal Labeling System; TLS-PC LINK™ Thermal Labeling System |
| Manufacturer Part Number | BM71-187-1-342 |
| Primary Noun, Basic Function | Sleeve |
| Printable Sides | Single-Side Printable |
| Printer Compatibility | M611; BMP61; BMP71; TLS-PC LINK |
| Quantity per Roll | 1000 |
| Recommended Ribbon | M71-R6600 |
| Shape | Rectangle |
| Suggested Ribbon Series | R4300; R6600 |
| Total Quantity | 1000 |
| Brady Material Number | B-342 |
| Material | Heat-shrink Polyolefin |
| Resistance Properties | Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant |
| Diameter as Supplied (in/ft/yd) | 0.187 in |
| Dimensions | 0.335 in H x 1.1677 in W |
| Dimensions 2 | 0.335 in H x 1.1677 in W |
| Height (mm/cm/m) | 8.50 mm |
| Maximum Service Temperature °F | 275 °F |
| Maximum Wire Diameter (mm/cm/m) | 3.81 mm |
| Minimum Service Temperature °C | -55 °C |
| Minimum Wire Diameter (in/ft/yd) | 0.062 in |
| Minimum Wire Gauge | 20 AWG |
| Recovered Diameter (mm/cm/m) | 1.6 mm |
| Roll Width (mm/cm/m) | 25.4 mm |
| Size - Width (mm) | 25.78 mm |
| Sleeve Size (mm/cm/m) | 4.8 mm Dia x 25.4 mm W |
| Sleeve Width (mm/cm/m) | 25.4 mm |
| Width (in/ft/yd) | 1.1677 in |
| Wire Gauge Range | 20 AWG to 10 AWG |
Regulatory Information
| CA Prop 65 Labeled | Yes |
|---|---|
| Contains CA PROP 65 Substance | Yes Contains-Label required |
| Contains CA PROP 65 Warning Type | Cancer |
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Pass 2011/65/EU(Pass 2015/863) |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| CA Prop 65 Label Warning | WARNING: Cancer - www.P65warnings.ca.gov |
|---|---|
| Contains CA PROP 65 Substance | Yes |
| Contains CA Prop 65 Cancer Causing Chemical | Antimony Trioxide |
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | Yes |
