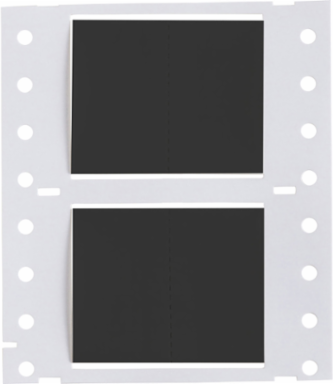

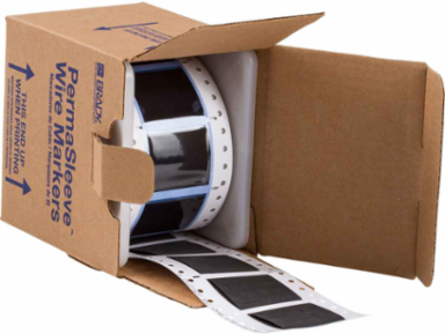

Brady PS-1000-2-BK-S-2 PermaSleeve Polyolefin Wire Marking Sleeves, Black, 1" Dia x 1" W, Roll of 200 Each
- MPN: PS-1000-2-BK-S-2
- UPC: 662820898474
- PPN: BRD-PS-1000-2-BK-S-2
- UNSPSC: 55121612
CAD
$402.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Format
- IP™ Enabled
- Markers per Roll
- 100
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; BBP72; i7100; i5100
- Quantity per Row
- 2
- Ribbon Series
- R6700-WT
- Sleeve Slits
- Yes
- Total Qty per Pack
- 200 Label(s) / Roll
- Trade Name
- PermaSleeve®
- Brady Material Number
- B-342
- Material
- Heat-shrink Polyolefin
- Resistance Properties
- Chemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
- Core Diameter (mm/cm/m)
- 76.20 mm
- Diameter as Supplied (mm/cm/m)
- 25.4 mm
- Dimensions (Metric)
- 25.40 mm W x 42.16 mm H
- Height (in/ft/yd)
- 1.66 in
- Maximum Service Temperature °C
- 135 °C
- Maximum Wire Diameter (in/ft/yd)
- 0.95 in
- Minimum Service Temperature °C
- -55 °C
- Minimum Wire Diameter (in/ft/yd)
- 0.375 in
- Minimum Wire Gauge
- 2 AWG
- Recovered Diameter (mm/cm/m)
- 9.5 mm
- Roll Width (mm/cm/m)
- 50.8 mm
- Sleeve Size (in/ft/yd)
- 1 in Dia x 1 in W
- Sleeve Width (in/ft/yd)
- 1 in
- Vertical Repeat
- 2 in
- Web Width (mm/cm/m)
- 89.00 mm
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Printer CompatibilityBBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
Quantity per Roll200
Recommended RibbonIP-R6700-WT; R6700-WT
Shrink Ratio3:1
Suggested Ribbon SeriesR4502S; R6700
Total Quantity200
Adhesive (Y/N)No
Label PropertiesHeat Shrink Sleeves
Material PropertiesFlame-retardant; Heat-shrinkable
SAP B-NumberB-342
Diameter as Supplied (in/ft/yd)1 in
Dimensions1.66 in H
Dimensions 21.66 in H
Height (mm/cm/m)42.16 mm
Maximum Service Temperature °F275 °F
Maximum Wire Diameter (mm/cm/m)24.13 mm
Minimum Service Temperature °F-67 °F
Minimum Wire Diameter (mm/cm/m)9.53 mm
Recovered Diameter (in/ft/yd)0.375 in
Roll Width (in/ft/yd)2 in
Size - Width (mm)25.40 mm
Sleeve Size (mm/cm/m)25.4 mm Dia x 25.4 mm W
Sleeve Width (mm/cm/m)25.4 mm
Vertical Repeat (mm)50.80 mm
Wire Diameter Range0.375 in to 0.95 in
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
