Documentation & Downloads

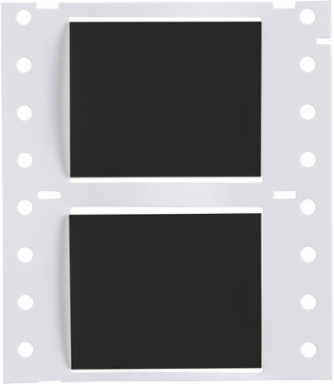

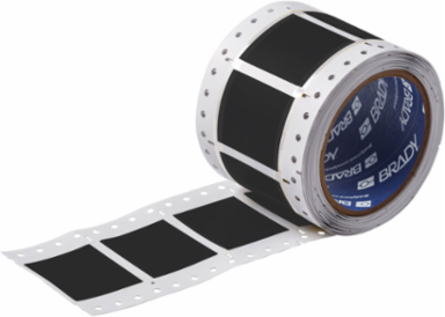

Brady PS-1000-2-BK PermaSleeve Polyolefin Wire Marking Sleeves, Black, 1" Dia x 2" W, Roll of 250 Each
- MPN: PS-1000-2-BK
- UPC: 662820915539
- PPN: BRD-PS-1000-2-BK
- UNSPSC: 55121612
CAD
$962.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
PermaSleeve® PS Heat-Shrink Polyolefin (B-342) wire marking sleeves combine speed, ease of use, and permanence to create long-lasting, high quality identification.
Features
- 3:1 heat shrinkable sleeve fit snugly around wires for maximum insulation protection and permanent identification
- Fade-resistant and smudge-proof for superior aesthetic appearance
- Cold resistant and flame-retardant with an operating temperature of -67°F to 275°F (-55°C to 135°C)
- Meets SAE-AMS-DTL-23053/5C (Class 1), SAE-AS-81531, MIL-STD-202;RoHS Compliant;and UL Recognized
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Electrical Labeling; Wire and Cable Labeling
- Color
- Black
- Finish
- Matte
- Format
- IP™ Enabled
- Markers per Roll
- 250
- Print Technology
- Thermal Transfer
- Printer and Label Applications
- Wire & Cable
- Printer Compatibility (Print)
- BBP12; BBP72; i7100; i5100
- Quantity per Row
- 1
- Ribbon Series
- R6700-WT
- Suggested Ribbon Series
- R4502S; R6700
- Total Quantity
- 250
- Adhesive (Y/N)
- No
- Label Properties
- Heat Shrink Sleeves
- Material Properties
- Flame-retardant; Heat-shrinkable
- SAP B-Number
- B-342
- Diameter as Supplied (in/ft/yd)
- 1 in
- Dimensions
- 1.66 in H
- Dimensions 2
- 1.66 in H
- Height (mm/cm/m)
- 42.16 mm
- Maximum Service Temperature °F
- 275 °F
- Maximum Wire Diameter (mm/cm/m)
- 24.13 mm
- Minimum Service Temperature °F
- -67 °F
- Minimum Wire Diameter (mm/cm/m)
- 9.53 mm
- Recovered Diameter (in/ft/yd)
- 0.375 in
- Roll Width (in/ft/yd)
- 2 in
- Size - Width (mm)
- 50.80 mm
- Sleeve Size (mm/cm/m)
- 25.4 mm Dia x 50.8 mm W
- Sleeve Width (mm/cm/m)
- 50.8 mm
- Vertical Repeat (mm)
- 50.80 mm
- Wire Diameter Range
- 0.375 in to 0.95 in
Brand NameBrady®
Enables Industry ComplianceASTM D 2671; ASTM E 162; ASTM E 662; ASTM G 155; MIL-STD-202; SAE-AMS-DTL-23053; SAE-AS-81531; UL Recognized
For Use with PrinterBBP®72 Label Printer; BRADY IP® Series Label Printer; BradyPrinter i5100; BradyPrinter i7100; BRADYPRINTER PR Plus Series Label Printer; THT 3" Core Printer
Label/Media FormatRoll
Primary Noun, Basic FunctionSleeve
Printable SidesSingle-Side Printable
Printer CompatibilityBBP12; BBP11; BBP72; IP300; IP600; PR200Plus; PR300Plus; PR600Plus; i7100; i5100
Quantity per Roll250
Recommended RibbonIP-R6700-WT; R6700-WT
Shrink Ratio3:1
Total Qty per Pack250 Label(s) / Roll
Trade NamePermaSleeve®
Brady Material NumberB-342
MaterialHeat-shrink Polyolefin
Resistance PropertiesChemical-Resistant; Corrosion-Resistant; Humidity-Resistant; Smear-Resistant; UV-Resistant; Weather-Resistant
Core Diameter (mm/cm/m)76.20 mm
Diameter as Supplied (mm/cm/m)25.4 mm
Dimensions (Metric)50.80 mm W x 42.16 mm H
Height (in/ft/yd)1.66 in
Maximum Service Temperature °C135 °C
Maximum Wire Diameter (in/ft/yd)0.95 in
Minimum Service Temperature °C-55 °C
Minimum Wire Diameter (in/ft/yd)0.375 in
Minimum Wire Gauge2 AWG
Recovered Diameter (mm/cm/m)9.5 mm
Roll Width (mm/cm/m)50.8 mm
Sleeve Size (in/ft/yd)1 in Dia x 2 in W
Sleeve Width (in/ft/yd)2 in
Vertical Repeat2 in
Web Width (mm/cm/m)89.00 mm
Wire Gauge28-18
Regulatory Information
- CA Prop 65 Labeled
- Yes
- Contains CA PROP 65 Substance
- Yes Contains-Label required
- Contains CA PROP 65 Warning Type
- Cancer
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
CA Prop 65 Label WarningWARNING: Cancer - www.P65warnings.ca.gov
Contains CA PROP 65 SubstanceYes
Contains CA Prop 65 Cancer Causing ChemicalAntimony Trioxide
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
