Weidmuller 4183130000 PF RS 80 GR 2000MM
- MPN: 4183130000
- PPN: WDM-4183130000
CAD
$113.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

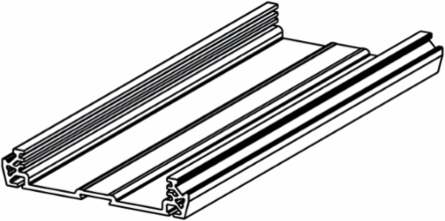

Electronics housings, RS 80 Pebble grey, Extruded profile, Width: 84 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- Extruded profile
- PCB thickness
- 1.6 mm
- Cross-connection
- No
- Protection degree
- IP20
Number of PCBs per module1
Tolerance for the PCB shape±0.2
Contact to terminal railNo
Encapsulation optionNo
Approvals
- ROHS
- Conform
Dimensions And Weights
- Length
- 2,000 mm
- Width
- 84 mm
- Height
- 15.7 mm
- Net weight
- 412.5 g
Length (inches)78.74 inch
Width (inches)3.307 inch
Height (inches)0.618 inch
Material Data
- Insulating material
- PVC
- Colour chart (similar)
- RAL 7032
- UL 94 flammability rating
- V-0
- Storage temperature, max.
- 70 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
ColourPebble grey
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.60 °C
Temperature range, installation, max.60 °C
Classifications
- ETIM 6.0
- EC002779
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC002779
eClass 9.127-18-27-90
UNSPSC30-21-18-01
Notes
- Descriptive text technical data

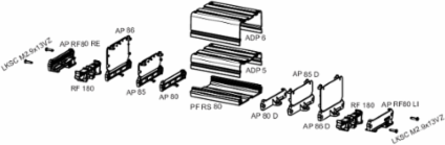

- 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 72 mm, TS 35x7.5 = 67.5 mmTS mounting with high cover: TS 32 = 91 mm, TS 35x7.5 = 86.5 mmDirect mounting, without/low/high cover: 17 / 44 / 63 mmDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: 67.8 (+0.2) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension ADP section = PCB length - 2 mmExample:PCB length 160 mm, RS section = 155.5 mm, ADP section = 158 mm
