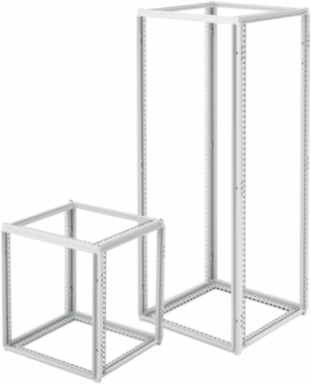

nVent Hoffman PF1485HF ProLine EMC Frame 1400x800x500mm, IP55, 28U, Steel, Plated Finish

MPN: PF1485HF
UPC: 783510100698
PPN: HOF-PF1485HF
UNSPSC: 39121334

$2852.77

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

ProLine EMC Frame 1400x800x500mm, IP55, 28U, Steel, Plated Finish

Features

12 gauge (2.5mm), roll-formed steel frame with welded steel corners
Open roll-formed profile design affords complete surface corrosion protection and assembly access
Plated finish for corrosion resistance and effective cover grounding
Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
Integral frame channels support the full weight of the mounting subpanel (sold separately)
Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
