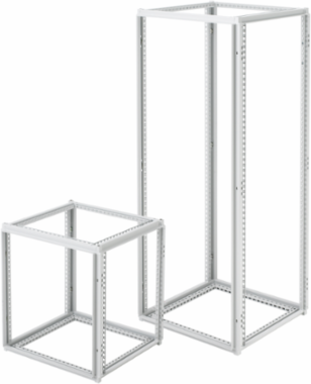

Nvent Hoffman PF20105HF ProLine EMC Frame 2000x1000x500mm, Steel, IP55, 42U Rack Space
Nvent Hoffman PF20105HF ProLine EMC Frame 2000x1000x500mm, Steel, IP55, 42U Rack Space
- MPN: PF20105HF
- UPC: 783510105990
- PPN: HOF-PF20105HF
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2534.00/ EA
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- Plated finish for corrosion resistance and effective cover grounding
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Product Family
- ProLine
- Max Rack Mounting Space
- 42
- Weight
- 103
- Thickness (T)
- 2.66
- Sub Brand
- ProLine
- Size
- 2000x1000x500mm
Height (H)2,000
Depth (D)500
Max Subpanel Size74.21 x 36.61
IP RatingIP55
FinishPlated
Works WithNEMA
MaterialSteel
