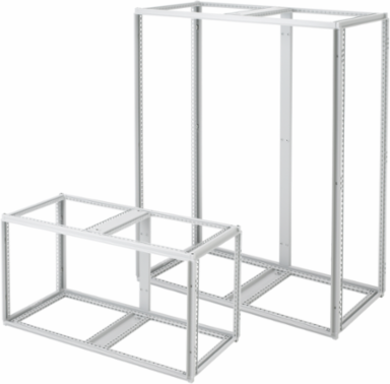

nVent Hoffman PF18168 Double-Bay Frame 1800x1600x800mm Steel, Powder Coated, 145.3 lb

Description

Features

• 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
• Open roll-formed profile design affords complete surface corrosion protection and assembly access
• RAL 7035 textured light-gray polyester powder paint finish
• Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
• Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
• Welded rear centerpost and cross members to facilitate population in either enclosure bay; no front center post allowing full access for subpanel mounting
• Integral frame channels support the full weight of the mounting subpanel (sold separately)
• Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
• Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications; optional center upright to accomplish mounting in individual bays sold separately
• Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
