nVent Hoffman PF20106HF ProLine EMC Frame 2000x1000x600mm Steel IP55 132.5 lbs
nVent Hoffman PF20106HF ProLine EMC Frame 2000x1000x600mm Steel IP55 132.5 lbs
- MPN: PF20106HF
- UPC: 783510106096
- PPN: HOF-PF20106HF
- UNSPSC: 39121334
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2969.08/ EA
Description

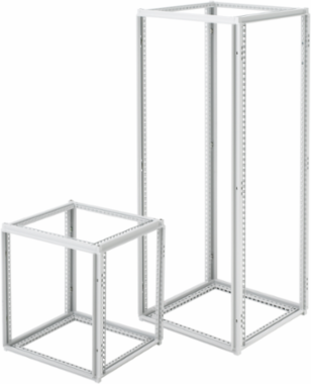

ProLine EMC Frame 2000x1000x600mm Steel IP55 132.5 lbs
Features
- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners
- Open roll-formed profile design affords complete surface corrosion protection and assembly access
- Plated finish for corrosion resistance and effective cover grounding
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Integral frame channels support the full weight of the mounting subpanel (sold separately)
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate metal-impregnated gasket door(s) and covers are required to maintain environmental rating while electrically bonded to frame, sold separately
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 1,000
- Product Family
- ProLine
- Max Rack Mounting Space
- 42
- Weight
- 132.5
- Thickness (T)
- 12
- Sub Brand
- ProLine
- Size
- 2000x1000x600mm
Height (H)2,000
Depth (D)600
Max Subpanel Size74.21 x 36.61
IP RatingIP55
FinishPlated
Works WithNEMA
MaterialSteel
Downloads
