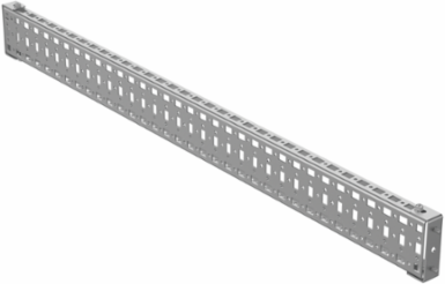

nVent Hoffman PGH3S12 ProLine Grid Straps 3-Row, 1200mm Deep, Galvanized Steel, 8 lb
- MPN: PGH3S12
- UPC: 783510160289
- PPN: HOF-PGH3S12
- UNSPSC: 39121321
CAD
$336.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
ProLine Grid Straps 3-Row, 1200mm Deep, Galvanized Steel, 8 lb
Features
- Can be mounted vertically between horizontally mounted Grid Straps
- Can be mounted left-to-right horizontally between front-to-back pairs or from the sides of the ProLine frame
- Can be mounted front-to-back horizontally across the bottom or sides of the ProLine frame
- When mounting width-wise from vertical to vertical, the grid strap chosen must be 100mm greater than the nominal size (i.e. 800mm wide enclosure would take a 900mm grid strap in this orientation)
- Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Fits Frame Depth
- 1,200
- Weight
- 8
- Thickness (T)
- 14
- Sub Brand
- ProLine
- Size
- fits 1200mm deep in
Product FamilyProLine
Hole PatternThree Rows
FinishGalvanized
Works WithNEMA
MaterialSteel
