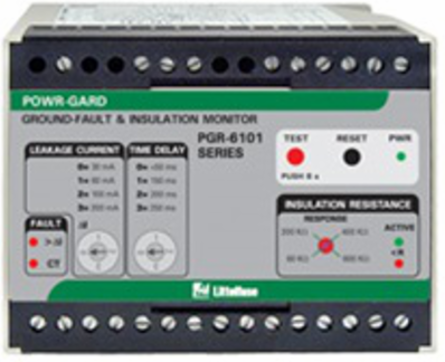

Littelfuse PGR-6101-120 PGR-6101-120 - PGR-6101 Series
- MPN: PGR-6101-120
- UPC: 079458940916
- PPN: LTF-PGR-6101-120
CAD
$3580.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The PGR-6101 combines the features of a ground-fault protection relay and insulation monitor into one unit. It protects against ground faults by monitoring insulation resistance when the motor is de-energized and by monitoring ground-fault current when the motor is energized. The PGR-6101 features two separate analog outputs for optional current and ohm meters, and two separate alarm relays. It operates on one- or three-phase solidly grounded, resistance grounded and ungrounded systems up to 6 kV.
Documentation & Downloads
Specifications
Key Specifications
| Approvals | UL |
|---|---|
| Supply Voltage (VAC) | 120 Vac |
| IEEE Device Numbers | 50G50N51G51N6474 |
| Dimensions | 3.0H X 3.9W X4.5D |
| Relay Contacts | Two Form C (N.O./N.C.) |
|---|---|
| Supply Voltage (VDC) | N/A |
| Relay Contact Operating Mode | Fail-Safe or Non-Fail-Safe |
