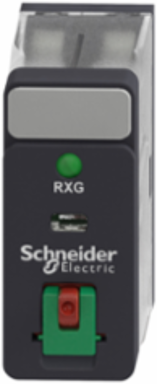

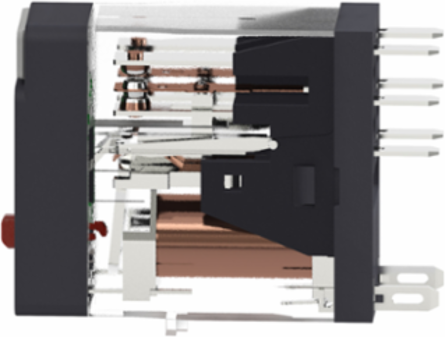

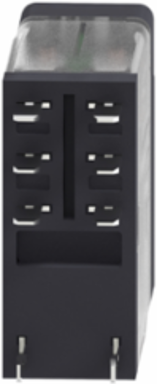

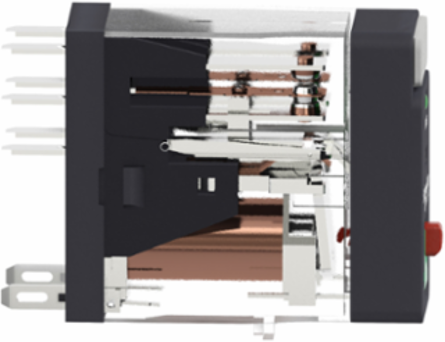

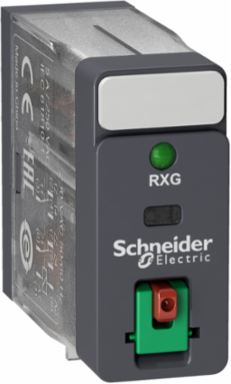

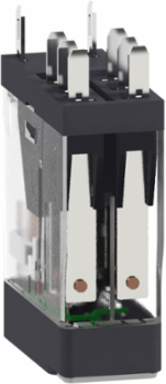

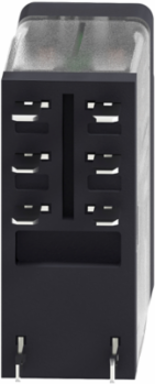

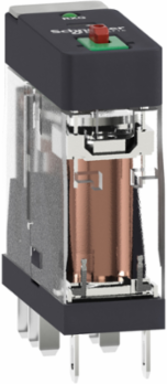

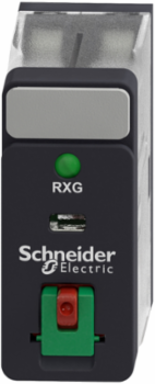

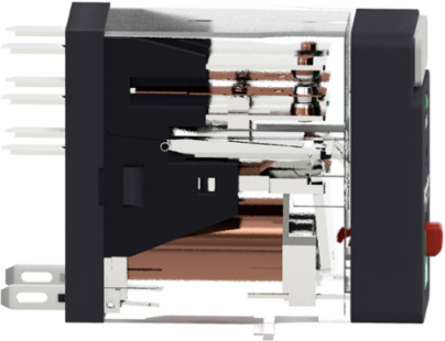

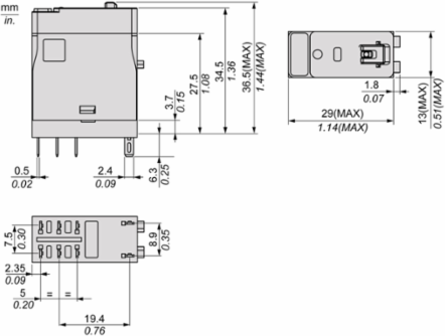

Schneider Electric RXG22B7 Harmony Electromechanical Relay 5A 24V AC 2C/O with LED
- MPN: RXG22B7
- PPN: SCH-RXG22B7
CAD
$20.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RXG plug-in relay socket has a coil control voltage of 24V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers a lockable test button and LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Features
- Outfitted with 2 Changeover (Double Pole Double Throw) silver-nickel contacts rated at 5 Amps, this interface relay allows industrial automation technicians to isolate or switch two independent circuits simultaneously. This dual-circuit layout is perfect for handling pilot duties, signaling circuits, and small fractional horsepower loads while optimizing spatial footprint inside dense control cabinets.
- Featuring a standard 24V AC (50/60 Hz) control coil, this relay integrates seamlessly into traditional machinery control loops and HVAC automation systems. The coil s electrical architecture ensures highly reliable armature actuation and drop-out timing, preventing control lag and minimizing chatter in environments prone to voltage fluctuations.
- Built with an ergonomic, front-mounted orange test button and an integrated latching slot, this device allows maintenance personnel to manually force the contacts closed for rapid circuit diagnostics. This mechanical override lets field electricians verify peripheral component operation and field wiring integrity instantly without needing to apply a live control signal from the PLC.
- Equipped with an integrated green LED indicator and a bright mechanical flag, this relay provides instant, dual-layered visual confirmation of the coil's energization state and contact position. This clear feedback accelerates routine panel auditing and fault isolation in dark or loud factory environments, drastically reducing operational downtime during diagnostics.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Singapore, United States
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 1250 VA
- Minimum Switching Capacity
- 50 mW at 10 mA, 5 V DC
Line Rated Current5 A
Maximum Switching Voltage250 V AC30 V DC
Rated Current5 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1000 V AC between contacts with micro disconnection, 5000 V AC between coil and contact with reinforced insulation, 3000 V AC between poles with basic insulation1300 V AC terminals and case with basic insulation
- Operating Rate
- <= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1800 cycles/hour under load, <= 1800 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
- Certificate Agency
- UL, EAC, CSA, CE, DNV
- [Uc] Control Circuit Voltage
- AC, 24 V
- Drop-out Voltage Threshold
- >= 0.3 Uc AC, >= 0.3 Uc AC>= 0.3 Uc AC, >= 0.3 Uc AC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.06466599441775461, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.2 kg CO2 eq., 0.1841355813711413
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Resistance
- 100 mOhm
- Contacts Type And Composition
- 2 C/O
- Electrical Insulation Class
- class F
- Load Current
- 5 A 250 V AC
- Mechanical Durability
- 10000000 cycles
- Overvoltage Category
- III
- Product Or Component Type
- plug-in relay
- Range Of Product
- Harmony Electromechanical Relays
- Reset Time
- 20 ms
- Safety Reliability Data
- B10d = 100000
- Shape Of Pin
- flat (faston type)
- Status Led
- with
- Test Levels
- level A group mounting
- Utilisation Coefficient
- 20 %
- Control Circuit Voltage
- 24 V
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Harmony RXG relays are interface plug-in relays with faston pins for better reliability and robust installation. This relays offer a broad range of coil voltages from 6 V to 110 Va and 24 V to 230 Va. The RXG interface relay range comprises 10 A relays with 1 CO contact and 5 A relays with 2 CO contacts and it also offers sockets with separate or mixed contact terminals, built-in plastic maintaining clamp. Product is adhering to IEC 61810-1 & UL 508 standards.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
- Recyclability Potential In %
- 70
- [Uimp] Rated Impulse Withstand Voltage
- 1200 V AC between contacts with micro disconnection6000 V between coil and contact with reinforced insulation1500 V between terminals and case with basic insulation4000 V between poles with basic insulation
- Package Weight(Lbs)
- 20.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability100000 cycles NO resistive at 55 °C, 100000 cycles NC resistive at 55 °C
Contacts Composition2 C/O
[Ie] Rated Operational Current5 A at 250 V (AC) conforming to IEC, 5 A at 30 V (DC) conforming to UL, 5 A at 30 V (DC) conforming to IEC5 A at 250 V (AC) conforming to UL
[Ui] Rated Insulation Voltage250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]0.06551564855924241, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0007132401944399417
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]10 kg CO2 eq., 10.300035087813598
Local Publishable Date2026-03-26
Stocking FlagN
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2208012EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Resistance260 Ohm at 23 °C +/- 10 %
Contacts Materialsilver alloy (AgSnO2In2O3)
Control Typelockable test button
Insulation Resistance1000 MOhm at 500 V DC
Local Signallingflag
Operating Time20 ms
Product AvailabilityStock - Normally stocked in distribution facility
Protection CategoryRT I
Relay Typeinterface relay
ReturnabilityYes
Series NameRXG series
Software Versionv6.1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint11 kg CO2 eq.
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation5 gn +/- 0.75 mm 10-150 Hz)not in operation
Pep CodeENVPEP2208012EN
Pep Verification Date2023-11-27
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Asia Pacific, APAC
[Ithe] Conventional Enclosed Thermal Current5 A -40-55 °C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536410020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 10.615065552356176
- Environmental Disclosure
- ENVPEP2208012EN
- Ip Degree Of Protection
- IP40
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2208012EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2208012EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Relative Humidity10-85 %
Pep Verification Date2023-11-27
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Overview Attributes
- Device Presentation
- complete product
Presentation Of Legendwith
