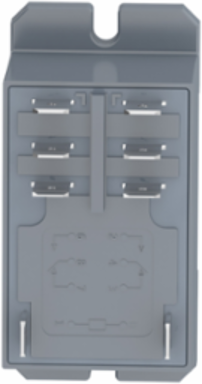

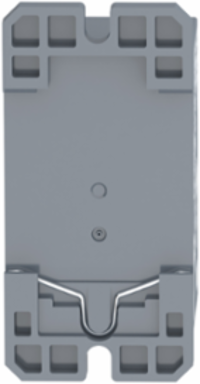

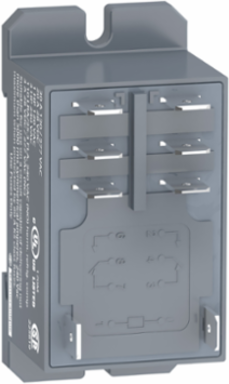

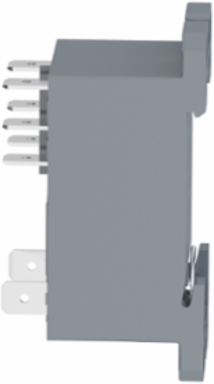

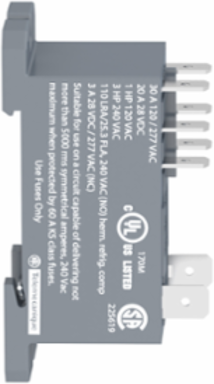

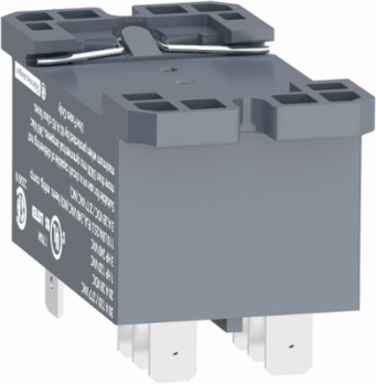

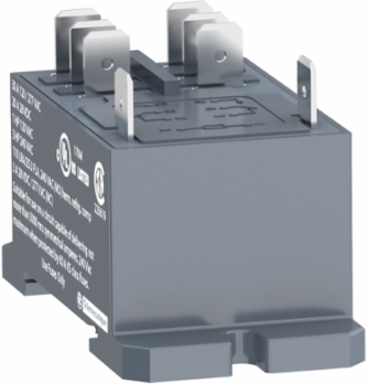

Schneider Electric RPF2BF7 Power Relay 30A 120V AC DIN Rail/Panel Mount 2 C/O

  • MPN: RPF2BF7
  • PPN: SCH-RPF2BF7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $27.66

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony RPF panel mounting power relay with fast-on terminals has a coil control voltage of 120V AC and has 2 normally open contacts with a rating of 30A. It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). 0 0 0 0 0 0 0 0 0 0 0 0 0

    Features

    • Operating on a 120V AC (50/60 Hz) control voltage, this relay integrates seamlessly into standard North American industrial control circuits and building automation networks. The optimized coil design ensures reliable pull-in even during minor voltage fluctuations, preventing chatter and extending the operational lifespan of your downstream equipment.
    • Featuring a versatile flat pin terminal design with integrated mounting tabs, this relay allows for direct panel mounting or secure DIN rail installation using a compatible socket. This dual-mounting capability simplifies retrofitting in older electrical enclosures while remaining fully compatible with modern modular setups.
    • Fully UL Listed, CSA Certified, and CE Marked, this heavy-duty power relay meets rigorous international safety and performance standards for industrial control equipment. Installing code-compliant components minimizes liabilities during electrical inspections and ensures reliable performance under continuous-duty operating conditions.
    • Built with a robust, dust-protected enclosure and high-grade silver alloy contacts, this relay resists environmental degradation and arc erosion over millions of mechanical cycles. The rugged construction reduces maintenance downtime and prevents premature failure in dusty factory environments or fluctuating plant temperatures.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginChina, Singapore, United States

    Physical Attributes

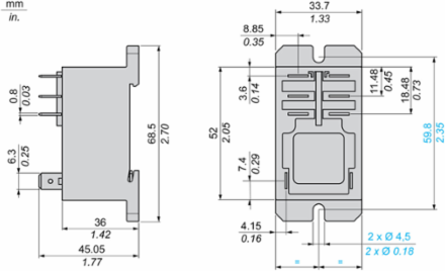

    Cad Overall Depth39.2 mm
    Cad Overall Width33.7 mm
    Cad Overall Height68.5 mm

    Complementary Attributes

    Control Circuit TypeAC
    Line Rated Current30 A
    Maximum Switching Voltage250 V IEC
    Minimum Switching Current500 mA
    Control Circuit Voltage Limits96...132 V
    Maximum Switching Capacity7500 VA/700 W
    Minimum Switching Capacity6000 mW 500 mA / 12 V NO170 mW 10 mA / 6 V NC

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Dielectric Strength2000 V AC between poles with basic, 4000 V AC between coil and contact with reinforced, 1500 V AC between contacts with micro disconnection
    Mounting SupportDIN rail, panel
    Contacts Composition2 C/O
    Certificate AgencyUL, GOST, CE, CSA
    [Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.20902329317351404, 0.2 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7827114994592784
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Weee Product Category5
    Eoli Availability DisplayNo need of specific recycling operations
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Average Consumption4 VA 60 Hz
    Compatibility CodeRPF
    Contacts Type And Composition2 C/O
    Electrical Durability100000 cycles resistive
    Operating Positionany position
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection CategoryRT II
    Relay Typepower relay
    ReturnabilityYes
    Series NameRPF series
    Shock Resistance10 gnin operation30 gnnot operating
    Status Ledwithout
    Test Levelslevel A group mounting
    Utilisation Coefficient10 %
    Control Circuit Type2AC
    Database Version2023-02
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.not applicable
    Functional-unit UnitUnit
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Ithe] Conventional Enclosed Thermal Current25 A -40-55 °C relays side by side without a gap30 A -40-55 °C 13 mm gap between two relays
    [Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs
    Drop-out Voltage Threshold>= 0.15 Uc>= 0.15 Uc
    Package Weight(Lbs)90.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Load Current25 A 28 V DC, 30 A 250 V AC
    Operating Rate<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
    Control Circuit Voltage120 V
    [Ie] Rated Operational Current3 A 28 V DC) NC UL, 3 A 250 V AC) NC IEC, 3 A 28 V DC) NC IEC30 A 277 V AC) NO UL, 20 A 28 V DC) NO UL30 A 250 V AC) NO IEC, 25 A 28 V DC) NO IEC3 A 277 V AC) NC UL
    Carbon Footprint Of The Distribution Phase [A4]0.11098077113366862, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.0003047993681876018
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]27 kg CO2 eq., 26.551167340930224
    Local Publishable Date2026-03-26
    Stocking FlagY
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Average Resistance4250 Ohm at 20 °C +/- 15 %
    Contacts Materialsilver tin oxide
    Control Typewithout lockable test button
    Mechanical Durability5000000 cycles
    Operating Time25 ms
    Product Or Component TypeDIN rail/panel mount relay
    Range Of ProductHarmony Electromechanical Relays
    Reset Time25 ms
    Safety Reliability DataB10d = 100000
    Shape Of Pinflat (faston type)
    Software Versionv6.1
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint28 kg CO2 eq.
    Vibration Resistance3 gn +/- 1 mm 10-150 Hz)5 cycles in operation10 gn +/- 1 mm 10-150 Hz)5 cycles not operating
    Pep CodeENVPEP2502021EN
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Energy Model - Manufacturing [A1-a3]China, CN
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %1
    [Ui] Rated Insulation Voltage250 V IEC300 V UL
    Connections - Terminalsquick-connect terminal
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8536490075

    Environment Attributes Main

    Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Ambient Air Temperature For Operation-40-55 °C-40-55 °C
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2502021EN
    Pcr VersionPCR-4-ed4-EN-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Carbon Footprint27.65418770406487
    Environmental DisclosureENVPEP2502021EN
    Ip Degree Of ProtectionIP40 conforming to IEC 60529
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-02-23
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component TypeDIN rail/panel mount relay
    Range Of ProductHarmony Electromechanical Relays

    ETIM

    ETIM 8EC001437
    ETIM 9EC001437

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months

    Overview Attributes

    Device Presentationcomplete product
    Power Relay 30A 120V AC DIN Rail/Panel Mount 2 C/O
    Power Relay 30A 120V AC DIN Rail/Panel Mount 2 C/O
    Power Relay 30A 120V AC DIN Rail/Panel Mount 2 C/O
