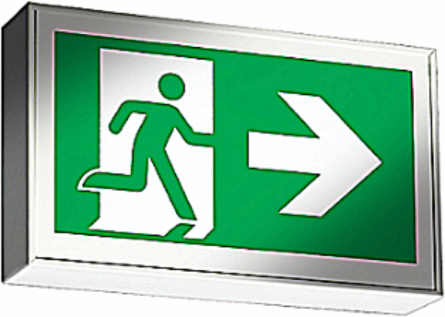

Thomas & Betts EA3WI Pictogram Exit Sign 7-3/4 Inch Height x 13-1/8 Inch Width, Nickel-Cadmium Battery
- MPN: EA3WI
- UPC: 782683443311
- PPN: T-B-EA3WI
CAD
$408.88
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Pictogram Exit Sign, universal face, universal mount, Housing Colour: factory white, Battery Type: nickel-cadmium, 120 to 347VAC, self-powered, no diagnostic, Battery Run Time (Minimum): 120 minutes
Features
- White LED light source
- Supplied standard with two pictogram films (single face universal mount and/ or single/double face universal mount) for direction selection
- Universal AC input: two-wire 120 to 347Vac, standard DC input: two-wire 6 to 24Vdc
- Energy efficient consumes less than 2.5 Watts in AC or DC remote mode
- Easy access to wiring entry for all mounting options
Specifications
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 4 |
| Weight Uom | 4.5 lbs. Each |
| Inner Dimensions (inches) | 9.5x13.25x4.125 |
|---|---|
| Outer Dimensions (inches) | 1x1x1 |
North American Specifications (UNSPSC)
| UNSPSC | 39111708 Emergency exit illuminated sign |
|---|---|
| Brand Name | Emergi-Lite |
| Application | Institutional, Commercial, Hospitality |
| Voltage Rating | 120 to 347VAC |
| Battery | Nickel-Cadmium |
| Legend | On |
| Material | Aluminum / Polycarbonate |
| IGCC | 3939 Emergency exit illuminated sign |
|---|---|
| Type | Pictogram Exit Sign |
| Standard | CSA |
| Battery Runtime | 120 minutes |
| Housing Color | Factory White |
| Size | 7-3/4 Inches Height x 13-1/8 Inches Width |
| Mounting | Universal |
