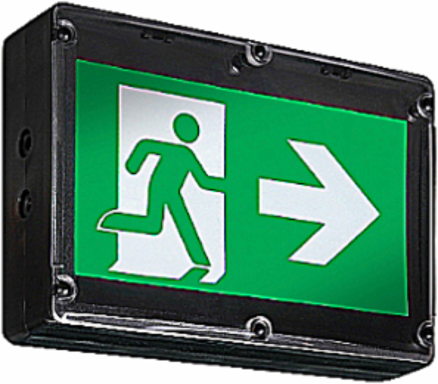

Lumacell LN1WSD Pictogram Exit Signs
Lumacell LN1WSD Pictogram Exit Signs
- MPN: LN1WSD
- UPC: 062461630639
- PPN: T-B-LN1WSD
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1141.67/ EA
Description
Pictogram Exit Sign, Unit Type: NEMA-4X & NSF, single face, Colour: factory white, Battery Type: nickel-cadmium, self-powered diagnostic Ni-Cd, 120/347VAC, Battery Run Time: 120 minutes
Features
- NEMA-4X Certified
- NSF compliant for food processing
- Polymeric enclosure is fully gasketed around lens and canopy to secure against water leaks
- Tamper-resistant, concealed test switch with magnetic action
- Long-life white LED light source is warrantied for ten (10) years
- Supplied standard with two pictogram films per face, for direction selection
- Universal AC input: two-wire 120 to 347VAC; standard DC input: two-wire 6 to 24VDC
- Energy efficient - consumes less than 2.5W in AC or DC-remote mode
- Self-Powered models deliver two hours of back-up lighting
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39111708 Emergency exit illuminated sign
- Brand Name
- Lumacell
- Application
- Institutional, Commercial, Hospitality
- Voltage Rating
- 120/347VAC
- Battery
- Nickel-cadmium
- Legend
- On
- Material
- Faceplate: Polycarbonate, Frame: Polyvinyl chloride
- Color
- Factory white
IGCC3939 Emergency exit illuminated sign
TypePictogram Exit Signs
StandardCSA
Battery Runtime120 minutes
Background ColorGreen
Size9-1/4 inches Height x 13-1/4 inches width
MountingUniversal
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 4
- Weight Uom
- 7 lbs. Each
Inner Dimensions (inches)1x1x.1
Outer Dimensions (inches)1x1x1
European Specifications (ETIM)
- ETIM
- EC001957 Emergency luminaire
- Battery quality
- NiCd
- Nominal voltage
- 120-347V
- Height/depth
- 234mm
Material housingOther
Voltage typeAC
Width357mm
