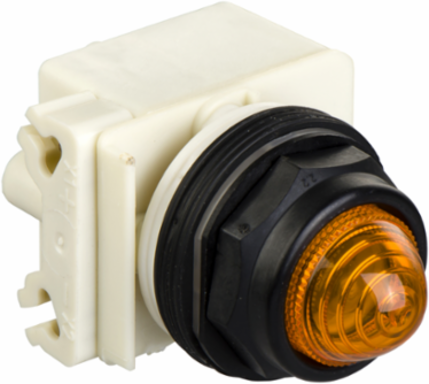

Schneider Electric 9001SKP1A9 Harmony 30mm Amber Pilot Light with IP66, 110-120V AC
- MPN: 9001SKP1A9
- UPC: 785901041122
- PPN: SCH-9001SKP1A9
CAD
$198.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony 9001SK, amber pilot light with transformer and plastic dome is supplied with 110V AC. It has a double insulated plastic bezel. It is easily installed into a standard 30mm diameter panel cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001SK
- Product Or Component Type
- pilot light
- Device Short Name
- 9001SK
Light Block Supplyvia integral transformer 120 V AC 50/60 Hz 6 V)
Lens Typedomed plastic
Complementary
- [Us] Rated Supply Voltage
- 110...120 V
- Lens Material
- polycarbonate
- Mounting Diameter
- 30 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A
- Shape Of Signaling Unit Head
- round
- Net Weight
- 0.181 kg
- Size
- 30 mm
- Device Presentation
- complete product
- Connections - Terminals
- screw clamp terminals, 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
- [Ui] Rated Insulation Voltage
- 250 V 2)EN/IEC 60947-1
- Operating Position
- any position
- Cad Overall Width
- 54 mm
- Shape Of Screw Head
- cross slotted
- Bulb Base
- BA 9s
[Us] Rated Supply Voltage110...120 V AC 50/60 Hz
Light Sourceincandescent bulb
Light Block Supplyvia integral transformer
Short-Circuit Protection10 A cartridge fuse EN/IEC 60947-5-1
Cap/Operator Or Lens Colouramber
[Uimp] Rated Impulse Withstand Voltage2.5 kV EN/IEC 60947-1
Cad Overall Height70 mm
Lens Typedomed
Light Sourceincandescent
Bezel Materialplastic
Tightening Torque0.8-0.8 N.m EN/IEC 60947-1
Cad Overall Depth42 mm
Supply Frequency50...60 Hz
Environment
- Product Certifications
- NEMA || UL 508
- Standards
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || JIS C8201-5-1 || JIS C 852 || UL 508 || JIS C8201-1
- Vibration Resistance
- 7 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Electrical Shock Protection Class
- class II IEC 61140
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 4X
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710019EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710019EN
